Official DistributorBy Rittal
SKU
Weight
12 kg

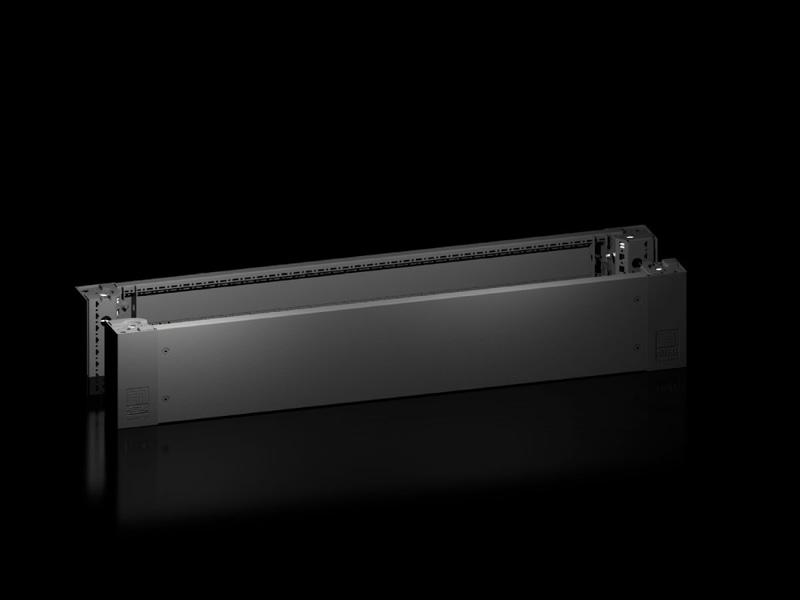

VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 200 mm, for W: 1200 mm, sheet steel
Supply includes
4 x base/plinth corner pieces, 200 mm high
4 x corner covers
1 x baying cover
1 base/plinth trim panel, front/rear, 200 mm
2 x base/plinth trim panels, front/rear, 100 mm high
Assembly components
Base/plinth corner pieces with base/plinth trim panels, front and rear, 200 mm for VX, VX IT, VX SE, TE, TS, TS IT, SE, TP, PC, IW
Heavy-duty preformed base/plinth corner pieces that self-position on the enclosure, can be used with or without base/plinth trim panel, depending on the application. Large openings in the base/plinth corner piece for optimal access to the screwing point, can be covered using plastic bay and corner covers.
Technical Specifications
Dimensions
| Height | 200 mm |
Material
| Base/plinth corner piece | Sheet steel |
| Base/plinth trims | Sheet steel |
| Corner and baying covers | Plastic |
Suitable for
| Width | = 1,200 mm |
| Color | RAL 9005 |
| Note | Base/plinth trim panels, on the side for closing off a base/plinth unit, for additional stabilization of the bases/plinths to one another, or for interior installation of the bases/plinths |
| Type rating according to UL 50E | Type 1, 12 |
| Weight/packaging unit | 12 kg |
| Packaging unit | 2 pc(s). |
| Customs tariff number | 94039910 |
| EAN | 4028177958890 |
| ETIM 7.0 | EC000721 |
| ECLASS 8.0 | 27182003 |
Why Proax for Rittal 8640025?
Proax is an authorized distributor of Rittal 8640025 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
