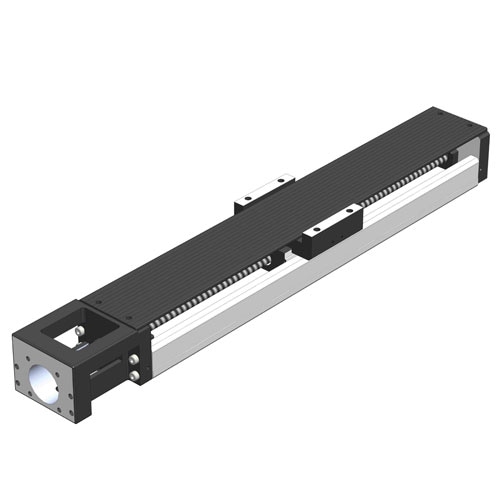

Linear Slide
KR2602A-0160-H0-11A0
Official DistributorSKU
ORIKR2602A0160H011A0
KR26 Linear Actuator
The THK KR Series linear slide consists of a highly ridid outer rail with a U-shaped cross section, LM Guide units on both sides and a Ball Screw unit in the center.- Single, Long Block Type
- High Rigidity, Compact and Space Saving
- Motor, Driver, Coupling, Flange, Sensors available
Technical Specifications
| Drive Method | Ball Screw |
| Cover Type | Yes |
| Ball Screw Grade | High Accuracy |
| Sensor Rail | Yes |
| Stroke | 160 mm |
| Lead | 2 mm |
| Static Permissible Moment Load | MA = 84 N·mMB = 84 N·mMC = 208 N·m |
| Dynamic Permissible Moment Load | KA = 14.532 N·mKB = 14.532 N·mKC = 12.23 N·m |
| Maximum Speed | 200 mm/s |
| Positioning Accuracy | 0.06 mm |
| Positioning Accuracy Repeat | ±0.005 mm |
| Running Parallelism | 0.025 mm |
| Backlash | 0.01 mm |
| Starting Torque | 0.015 N·m |
| Maximum Input Torque | 0.622 N·m |
| Maximum Input Speed | 6000 (r/min) |
| Screw Shaft Diameter | 8 mm |
| Friction Coefficient | 0.01 |
| Efficiency | 90% |
| Screw Material | Iron |
| Mass of Moving Element (Block) | 0.18 kg |
| Mass of Moving Element (Sub Table) | 0.085 kg |
| Agency Approvals | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
Why Proax for Oriental Motor KR2602A-0160-H0-11A0?
Proax is the authorized distributor of Oriental Motor KR2602A-0160-H0-11A0. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | KR2602A0160H011A0 |
| Pack Size | 1 |
