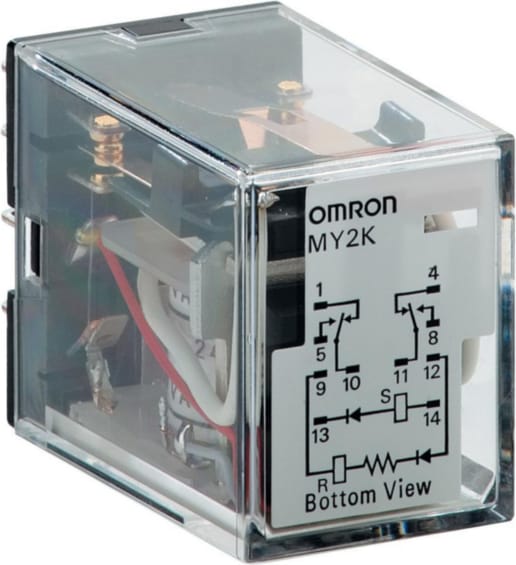

MYK
Magnetic latching relay ideal for memory- and data-transmission circuits
Double-winding latch system that holds residual magnetism. The special magnetic materials make changes due to aging negligible, thus ensuring long continuous holding time. There is little change in characteristics such as contact follow, contact pressure, etc. throughout its long life.
- Magnetic latching relay
- DPDT contact type
- 3A rated load
- Excellent vibration/shock resistance
- Built-in operation indicator ensures easy ON/OFF operation monitoring
Technical Specifications
| Special Function | Latching Relay |
| Contact Arrangement | DPDT |
| Rated load (resistive) | 3A@220VAC, 3A@24VDC |
| Rated load (inductive) | 0.8A@220VAC, 1.5A@24VDC |
| Max. switching voltage | 250VAC, 125VDC |
| Max. switching current | 3 A |
| Max. switching power(resistive) | 660 VA, 72 W |
| Max. switching power(inductive) | 176 VA, 36 W |
| Minimum Load | 1 mA@1 VDC |
| Coil Voltage | 12 VDC |
| Power consumption | Set coil: Approx. 1.3 W |Reset coil: Approx. 0.6 W |
| Terminal | Plug-in |
| Operating Temperature | -55 to 60°C |
| RoHS Compliant | Yes |
Why Proax for Omron MY2K DC12?
Proax is an authorized distributor of Omron MY2K DC12. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | MY2KDC12 |
| Pack Size | 1 |
