8620091
Official DistributorBy Rittal
SKU
RIT8620091
Weight
1.95 kg
This product has been discontinued

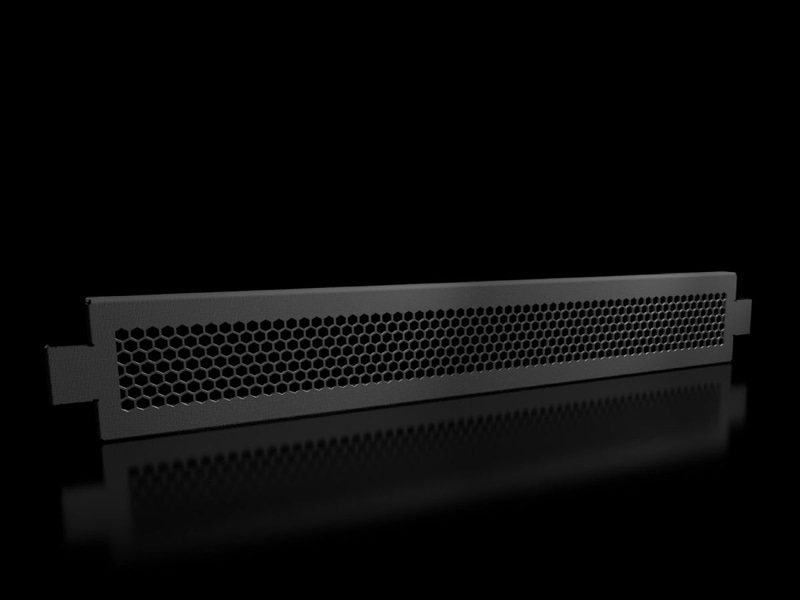

VX Base/plinth trim panel, vented, for W/D: 800 mm, sheet steel
Supply includes
Assembly components
Base/plinth trim panels, vented For VX base/plinth systems
For enclosure ventilation through the base/plinth. Specifically in applications such as power distribution where the enclosure gland plates are not used, this can be used to achieve a higher air throughput inside the enclosure. Various solutions to raise the roof and special roof plates with vent openings are also available for enclosure venting. With a 200 mm base/plinth height, one or two vented trim panels may optionally be used. Due to the complete symmetry of the VX base/plinth system, the vented trim panels can be mounted either at the front, at the back or at the side of the base/plinth corner piece.
Technical Specifications
Dimensions
| Height | 100 mm |
Suitable for
| Enclosure Type | VX |
| To fit width/depth | 800 mm |
| Material | Carbon steel |
| Color | RAL 9005 |
| Type rating according to UL 50E | Type 1, 12 |
| Weight/packaging unit | 1.95 kg |
| Packaging unit | 2 pc(s). |
| Customs tariff number | 94039910 |
| EAN | 4028177922440 |
| ETIM 7.0 | EC000721 |
| ECLASS 8.0 | 27182003 |
Why Proax for Rittal 8620091?
Proax is an authorized distributor of Rittal 8620091 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
