8620081
Official DistributorBy Rittal
SKU
RIT8620081
Weight
3.56 kg

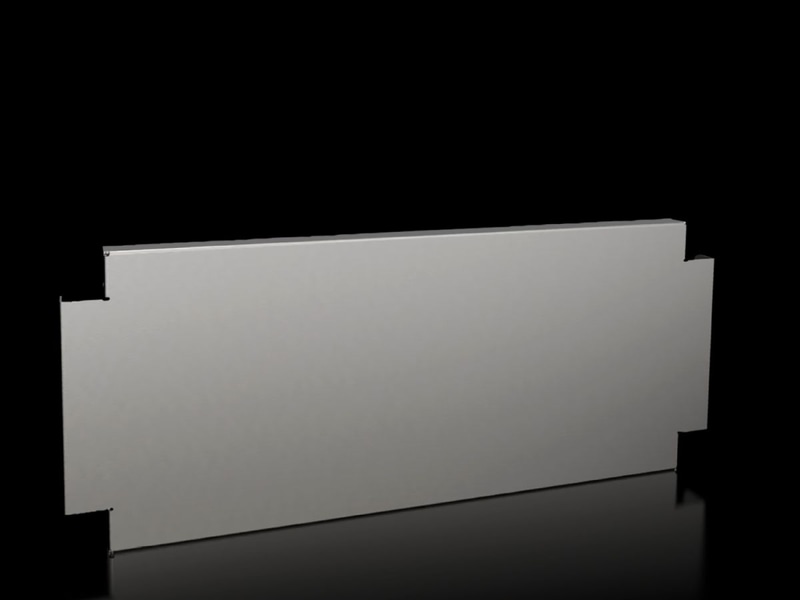

VX Base/plinth trim panel, side, H: 200 mm, for D: 500 mm, stainless steel, 1.4301
Supply includes
Assembly components
Base/plinth trim panels, side, 200 mm, stainless steel For VX base/plinth systems
Stainless steel base/plinth trim panels are used depth-wise for laterally closing a base/plinth unit.
Technical Specifications
Dimensions
| Height | 200 mm |
Suitable for
| Depth | = 500 mm |
| Material | Stainless steel 1.4301 (AISI 304) |
| Surface finish | Brushed, grain 400 |
| Type rating according to UL 50E | Type 1, 3R, 4, 4X, 12 |
| Weight/packaging unit | 3.56 kg |
| Packaging unit | 2 pc(s). |
| Customs tariff number | 94039910 |
| EAN | 4028177922419 |
| ETIM 7.0 | EC000721 |
| ECLASS 8.0 | 27182003 |
Why Proax for Rittal 8620081?
Proax is an authorized distributor of Rittal 8620081 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
