8620053
Official DistributorBy Rittal
SKU
RIT8620053
Weight
9.46 kg

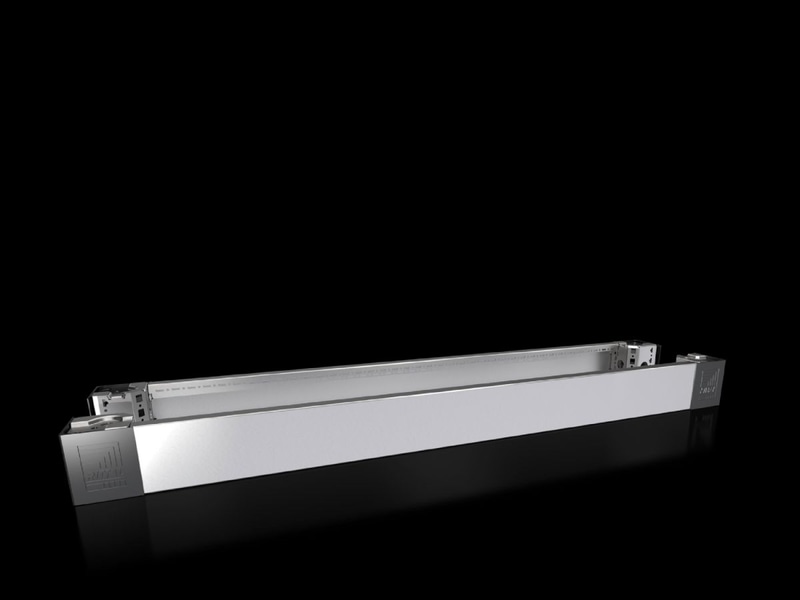

VX Base/plinth corner piece, with base/plinth trim panel, front and rear, H: 100 mm, for W: 1200 mm, stainless steel, 1.4301
Supply includes
4 x base/plinth corner pieces
4 x corner covers
1 x baying cover
2 x base/plinth trim panels, front/rear, 100 mm high
Assembly components
Base/plinth corner pieces with base/plinth trim panels, front and rear, 100 mm stainless steel for VX, TS, SE
Base/plinth corner pieces with molded self-positioning to the bayed enclosure system, for use with or without trim panels depending on the application. Large openings in the base/plinth corner piece for best access to the screw-fastening point can be covered using bay and corner covers.
Technical Specifications
Dimensions
| Height | 100 mm |
Material
| Base/plinth corner piece | Stainless steel 1.4301 (AISI 304) |
| Base/plinth trim panels, front/rear | Stainless steel 1.4301 (AISI 304) |
| Corner and baying covers | Plastic |
Suitable for
| Width | = 1,200 mm |
| Surface finish | Trim Panel: Brushed, grain 400 |
| Note | Base/plinth trim panels, on the side for closing off a base/plinth unit, for additional stabilization of the bases/plinths to one another, or for interior installation of the bases/plinths |
| Type rating according to UL 50E | Type 1, 3R, 4, 4X, 12 |
| Weight/packaging unit | 9.46 kg |
| Packaging unit | 2 pc(s). |
| Customs tariff number | 94039910 |
| EAN | 4028177922327 |
| ETIM 7.0 | EC000721 |
| ECLASS 8.0 | 27182003 |
Why Proax for Rittal 8620053?
Proax is an authorized distributor of Rittal 8620053 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
