7859312
Official DistributorBy Rittal
SKU
RIT7859312
Weight
3.92 kg

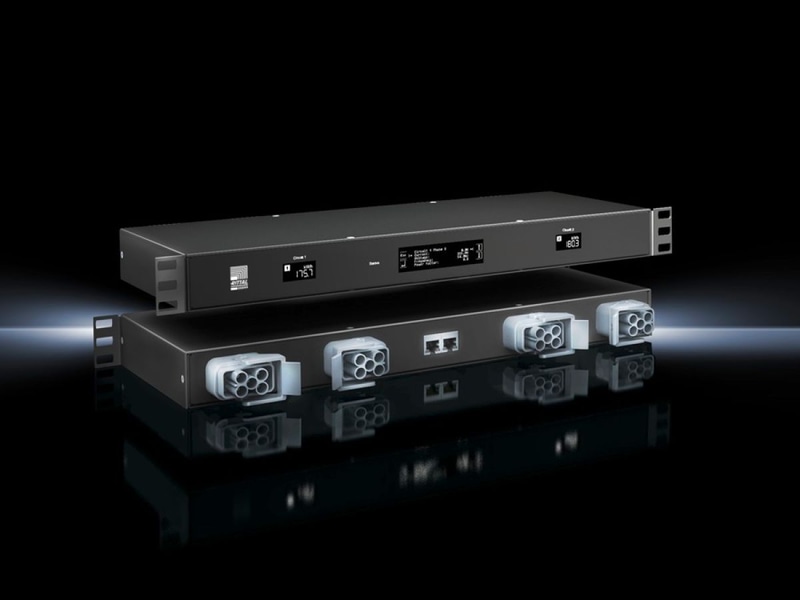

DK PSM MID measurement module, HxD: 1 U x 200 mm, 230 V, 3~, 16 A, Infeed: 2
Supply includes
Assembly components
Technical Specifications
Dimensions
| Depth | 200 mm |
| Benefits | For 16 A and 32 A phase current |
| Material | Housing: Carbon steel |
| Color | RAL 9005 |
| Qty. | 2 |
| Phases per infeed | 3~ |
| Input Voltage | 230 V |
| Rated current | 16 A |
| Guidelines | Low-Voltage Directive 2014/35/EU |
| Protection category IP to IEC 60 529 | IP 51 |
| Standards | IEC 60 950 |
| Measurement functions, description | Voltage V, current A, frequency Hz |
| Operating temperature range | -25 °C...55 °C |
| Ambient humidity (non-condensing) | 95 % |
| Relative humidity (non-condensing) | 10 % |
| Storage temperature range | -25 °C...70 °C |
| Weight/packaging unit | 3.92 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177677593 |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27371306 |
Why Proax for Rittal 7859312?
Proax is an authorized distributor of Rittal 7859312 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
