7859053
Official DistributorBy Rittal
SKU
RIT7859053
Weight
5.984 kg

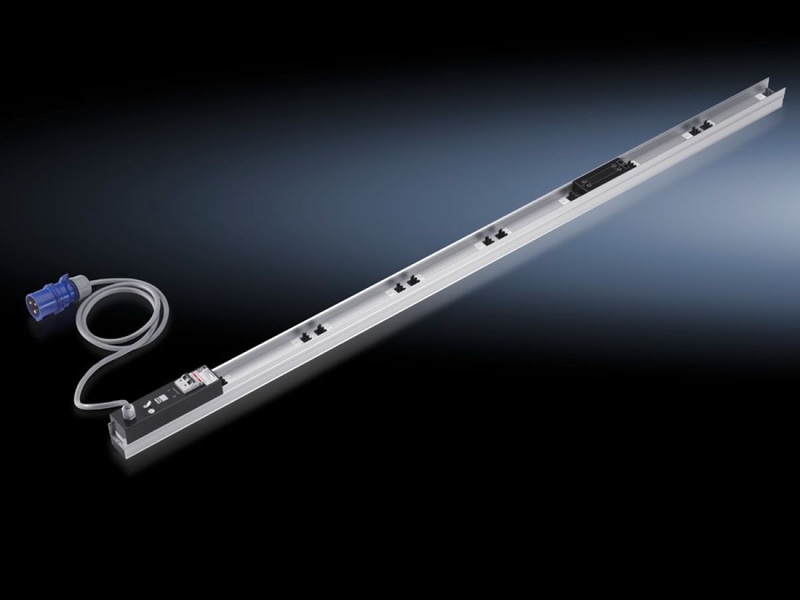

DK PSM measurement bar, 230 V, 1~, 32 A, 50/60 Hz, Infeed: 1, For H: 2000 mm
Technical Specifications
Suitable for
| Enclosure Type | VX IT |
| Height | 2,000 mm |
| Benefits | Modular system |
| Material | Aluminum extruded section, natural anodized |
| Length of connection cable | 3 m |
| Type of connection (electrical) | CEE |
| Number RJ45 ports for sensor units max | 2 |
| Qty. | 1 |
| Phases per infeed | 1~ |
| Input Voltage | 230 V, 50/60 Hz |
| Rated current (max.) | 32 A |
| Module slots (max.) | 6 |
| Guidelines | Low-Voltage Directive 2014/35/EU |
| Protection category IP to IEC 60 529 | IP 20 |
| Standards | EN 61000-6-1 |
| Measurement functions, description | Voltage V, current A, frequency Hz |
| Operating temperature range | 0 °C...45 °C |
| Ambient humidity (non-condensing) | 10...95 % |
| Storage temperature range | -25 °C...70 °C |
| Weight/packaging unit | 5.984 kg |
| Customs tariff number | 85369001 |
| EAN | 4028177677586 |
| ETIM 7.0 | EC000215 |
| ECLASS 8.0 | 27371306 |
Why Proax for Rittal 7859053?
Proax is an authorized distributor of Rittal 7859053 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
