3311435
Official DistributorBy Rittal
SKU
RIT3311435
Weight
201 kg
This item is ineligible for free shipping due to its size/weight.

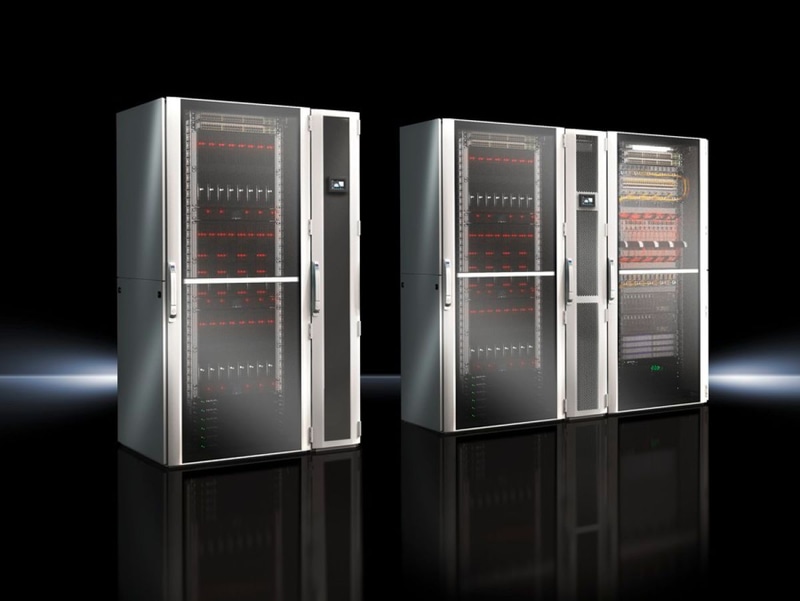

SK LCP Inline DX, UL, RAL 9005,
Technical Specifications
Air throughput (unimpeded air flow)
| Air throughput at 50 Hz | 4,800 m³/h |
Dimensions
| Width | 300 mm |
| Height | 2,000 mm |
| Depth | 1,000 mm |
| Model no. | LCP INLINE DX UL 12KW 2000H0300W1000D |
| Benefits | Maximum energy efficiency due to EC fan technology and IT-based control |
| Function principle | The LCP draws in the air at the sides at the rear of the server enclosures, cools it using high-performance compact impellers, and blows the cooled air back into the front part of the server enclosure at the sides |
| Color | RAL 9005 |
| Max. cooling output | 12 kW |
| Duty cycle | 100 % |
| Type of connection (electrical) | Connection clamp |
| Cooling medium | R410A |
| EC fan | Yes |
| Fans may be exchanged with the system operational | Yes |
| Temperature control | Infinitely variable fan control |
| Note | Ethernet cable 2482.720 required with SNMP network card 3311.320 |
| Installation in bayed enclosure suite | Flush |
| Modulation range | 3 ‐ 12 kW |
| Operating temperature range | 15 °C...35 °C |
| Storage temperature range | -20 °C...60 °C |
| Total cooling output/number of fan modules | 12 kW |
| Weight/packaging unit | 201 kg |
| UPC-Code | 90768 |
| ECLASS 8.0 | 27180712 |
Why Proax for Rittal 3311435?
Proax is an authorized distributor of Rittal 3311435 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
