3311410
Official DistributorBy Rittal
SKU
RIT3311410
Weight
207 kg
This item is ineligible for free shipping due to its size/weight.

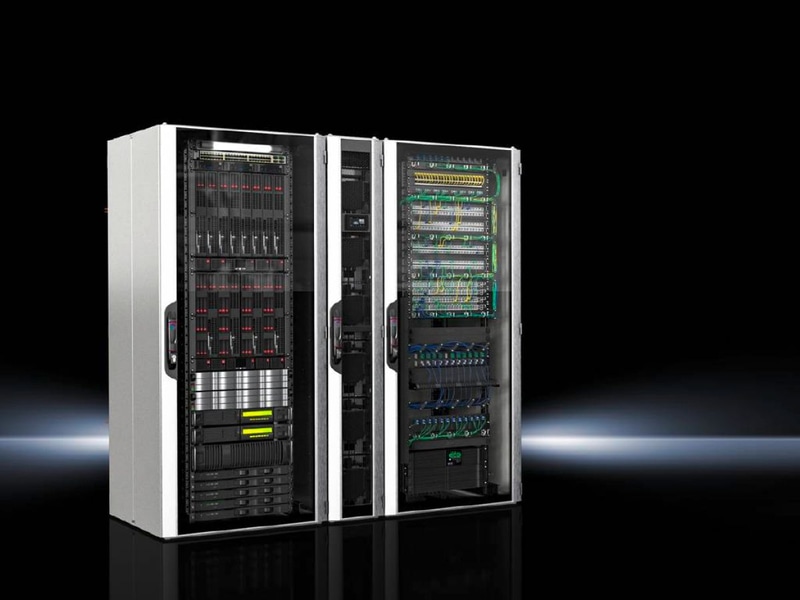

SK LCP Rack DX, Refrigerant-based split cooling unit for rack cooling, Mounted on the side of the rack, flush, Cooling of one up to maximum two racks, Support of IT-compatible, #front-to-back# air routing,
Technical Specifications
Air throughput (unimpeded air flow)
| Air throughput at 50 Hz | 4,800 m³/h |
Dimensions
| Width | 300 mm |
| Height | 2,000 mm |
| Depth | 1,000 mm |
Refrigerant/cooling medium
| Refrigerant | R410A |
| Cooling medium | Refrigerant |
Total cooling output to DIN EN 14511
| Useful cooling output L22 L30 | 12 kW |
| Useful cooling output L22 L45 | 10 kW |
| Benefits | Maximum energy efficiency due to EC fan technology and IT-based control |
| Applications | Ideal for IT cooling of small and medium-sized locations |
| Function principle | The LCP draws in the air at the sides at the rear of the server enclosures, cools it using high-performance compact impellers, and blows the cooled air back into the front part of the server enclosure at the sides |
| Material | Carbon steel, spray finished |
| Color | RAL 7035 |
| Options | Humidifier Dehumidification and reheater Condensate lift pump Higher cooling output Low-temperature/high-temperature condenser (-40 °C/+53 °C) |
| Version | Rack cooling |
| Monitoring | Direct connection of the unit via SNMP over Ethernet |
| Note | Variant with UL approval available on request |
| Modulation range | 3 ‐ 12 kW |
| Total cooling output/number of fan modules | 12 kW / 4 |
| Suitable for enclosure type | TS IT |
| Installation in bayed enclosure suite | Flush |
| Rated operating voltage | 380 V - 480 V, 3~, 60 Hz |
| Rated current max. | At 50 Hz: 7.5 A |
| Max. cooling output | 12 kW |
| Type of connection (electrical) | Connection clamp |
| Duty cycle | 100 % |
| EC fan | Yes |
| Fans may be exchanged with the system operational | Yes |
| Temperature control | Infinitely variable fan control |
| Start-up current | 11 A |
| Pre-fuse | Miniature circuit-breaker/fuse: 20 A |
| Air throughput at 50 Hz | 4,800 m³/h |
| Storage temperature range | -20 °C...50 °C |
| Operating temperature range | 15 °C...35 °C |
| Noise pressure level | At 50 Hz: 69 dB(A) |
| Protection category IP to EN 60 529 | IP 20 |
| Weight/packaging unit | 207 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177691315 |
| ETIM 7.0 | EC002515 |
| ECLASS 8.0 | 27180712 |
