Patlite EHV-M1HG
AllIndustrial Control Panels ComponentsLighting and signalingTower Lights and BeaconsComponents
PatliteOfficial Distributor

By Patlite

SKU

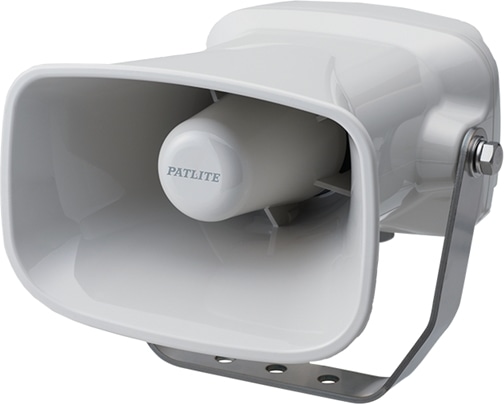

    Horn style, Outdoor rated,12-24V DC, 8-channel field prog. MP3 smart alert alarm w/ 63 pre-programmed sounds and 220 sec. of rec. time w/ MP3 files, 110dB @ 1m, 0.4m cable; Off-white
    • Features a strong vibration resistance of up to 4.5G force.
    • Designed with a horn-style speaker with a loud sound output of a maximum of 110dB (at 1m).
    • 4 playback modes and commands available so that you can tailor your EHV device to suit your application. Playback Modes: Normal Playback; Input Priority Playback; Hold Playback; Memory Playback Command Modes: Sound Reduction; Factory; Public Address; Bit/Binary; MP3 ON/OFF; Forced Playback; Group Selection Terminal Assignment Modes: Playback; STOP; CLEAR; Sound Reduction
    • 8 channels with 63 pre-programmed sounds (G type alarm group), and 220 seconds of MP3 recording time.
    • Can be used with either PNP or NPN transistor-driven inputs.
    • Field-programmable with custom MP3 files with the use of an SD card (SDV-2GP recommended, sold separately).
    • Jacketed Cable connection.
    • UL listed, IP65 rating, complies with RoHS Directive, and conforms to CE requirements.(EHV-M1 Only)

    Documents

    Why Proax for Patlite EHV-M1HG?

    Proax is the authorized distributor of Patlite EHV-M1HG. Our highly skilled in-house technical team is ready to assist with any technical needs.

    Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

    Short Lead Time
    Highly Trained Staff
    Live Chat
    Technical Support
    Local Inventory
    60+ Years Experience
    Additional Information
    Alternate NamesEHVM1HG
    Pack Size1
    Recommended
    • PatliteEHV-M1HG-EX
      EHV-M1HG-EX
      ATEX Zone 2, Zone 22, Field-Programmable, MP3 & 63 preloaded melody and alarm sounds, up to 110 dB, 0.5m cable
    • PatliteEHV-M2HG
      EHV-M2HG
      MP3 prog, 220 sec recording time at @64kbps, 0.5m cable, 63 pre-programmed sounds, up to 110 dB
    • PatliteEHV-M3HG
      EHV-M3HG
      MP3 prog, 220 sec recording time at @64kbps, 0.5m cable, 63 pre-programmed sounds, up to 110 dB
    • PatliteEHV-M1TG
      EHV-M1TG
      Audible Annunciator, MP3 Programmable, 63 Pre-programmed Alarms, Terminal Block, Outdoor Rated
    • PatliteEHV-M1TG-EX
      EHV-M1TG-EX
      ATEX Zone 2, Zone 22, Field-Programmable, MP3 & 63 preloaded melody and alarm sounds, up to 110 dB, terminal
    • PatliteEHV-M2TG
      EHV-M2TG
      MP3 prog, 220 sec recording time at @64kbps, terminal blk, 63 pre-programmed sounds, up to 110 dB
    • PatliteEHV-M3TG
      EHV-M3TG
      12VDC-48VDC, MP3 Prog, 220 sec Recording Time at @64kbps
