FL NAT SMN 8TX-M
Weight
0.836 kg

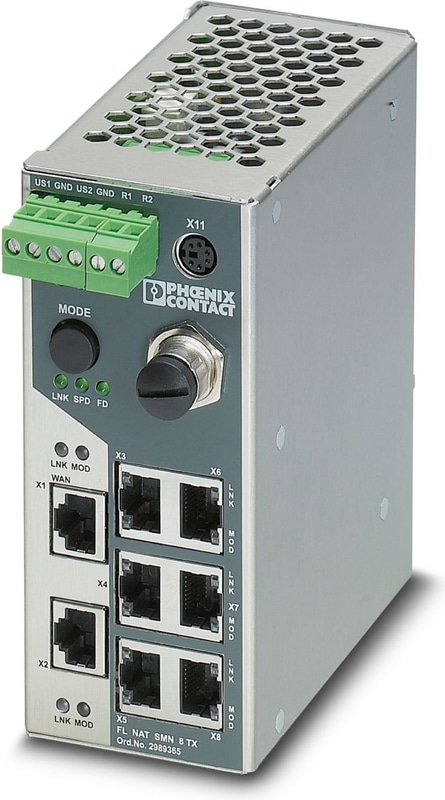

FL NAT SMN 8TX-M - Industrial Ethernet Switch
Smart Managed Narrow NAT switch with eight 10/100 Mbps RJ45 ports and 1:1 NAT router function
- Routing
- RSTP with fast switch-over
- Virtual NAT
- 1:1 NAT
- VLANs
- SNMP
- Web-based management, SNMP
- Slim design
- 7 LAN-Ports
Technical Specifications
Dimensions
| Width | 57 mm |
| Height | 133 mm |
| Depth | 130 mm |
Material specifications
| Color | gray aluminum |
Mounting
| Mounting Type | DIN rail mounting |
Ethernet
| Connection Method | RJ45 |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission Speed | 10/100 Mbps |
| Transmission physics | Copper |
| Transmission length | 100 m (per segment) |
| Signal LEDs | Supply voltage, data transmission, error, link, activity |
| No. of channels | 8 (RJ45 ports) |
Serial (RS-232)
| Connection Method | RS-232-C, 6-pos. MINI-DIN socket (PS/2) |
Product properties
| Product family | Managed NAT Switch SMN |
| Type | Book type |
| MTTF | 349.06 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 185.83 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 46.86 Years (SN 29500 standard, temperature 70°C, operating cycle 100%) |
Switch functions
| Diagnostic functions | RMON History |
| Diagnostic functions | LLDP (Link Layer Discovery Protocol) |
| Diagnostic functions | SNMP-Traps |
| Basic Functions | Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router |
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 600 mA (maximum) |
| Filter functions | VLAN (up to 32 VLANs) |
| Management | Web-based management (HTTP) |
| Management | SNMP v1/v2 |
| Redundancy | RSTP (Rapid Spanning Tree Protocol) |
| Redundancy | FRD (Fast Ring Detection) |
| Redundancy | Large Tree Support |
| Redundancy | STP (Spanning Tree Protocol) |
| Redundancy | MRP (Media Redundancy Protocol) |
| Status and diagnostic indicators | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
| Supported browsers | Internet Explorer 5.5 or higher |
| Additional functions | Routing (1:1 NAT, Virtual NAT, Routing) |
| Additional functions | BootP |
| Additional functions | DHCP-Client |
Security functions
| Dynamic Host Configuration Protocol (DHCP) support | Client/ Relay Agent |
| Basic Functions | Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router |
| Link Layer Discovery Protocol (LLDP) | As per protocol 802.2 |
| Network Time Protocol (NTP) client | Client |
| Routing | NAT, 1:1-NAT, Virtual NAT |
Electrical properties
| Power consumption | 14.5 W |
| Transmission medium | Copper |
Supply
| Supply voltage (DC) | 24 V DC (redundant) |
| Supply Voltage Range | 18 V DC ... 32 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Residual ripple | 3.6 VPP (within the permitted voltage range) |
| Max. current consumption | 600 mA |
| Typical current consumption | 600 mA (at US = 24 V DC) |
Function
| Signal contact control voltage | 24 V DC (typical) |
| Signal contact control current | 600 mA (maximum) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (non-condensing) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Vibration (Operation) | in accordance with IEC 60068-2-6: 5g, 10 Hz ... 150 Hz |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above mean sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
EMC data
| Conformance with EMC directives | IEC 61000-4-2 (ESD) Criterion A |
| Conformance with EMC directives | IEC 61000-4-3 (electromagnetic fields) Criterion A |
| Conformance with EMC directives | IEC 61000-4-4 (burst) Criterion A |
| Conformance with EMC directives | IEC 61000-4-5 (surge) Criterion A |
| Conformance with EMC directives | IEC 61000-4-6 (immunity to conducted interference) Criterion A |
| Noise immunity | EN 61000-6-2:2005 |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4:2007 + A1:2011 |
Functionality
| Basic Functions | Store and forward switch, complies with IEEE 802.3 2, priority classes in acc. with IEEE 802.1 P TCP/IP protocol, BootP-capable, integrated web server function, Rapid Spanning Tree (RSTP), router, 1:1 NAT router |
System requirements
| Supported browsers | Internet Explorer 5.5 or higher |
Signaling
| Status display | LEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex) |
