Official DistributorSKU
MPN
EV-T1G2C-1AC40A-25FT12ASBK11U
Weight
3.21 kg
This product is Not Cancellable/Not Returnable
Series EV-T

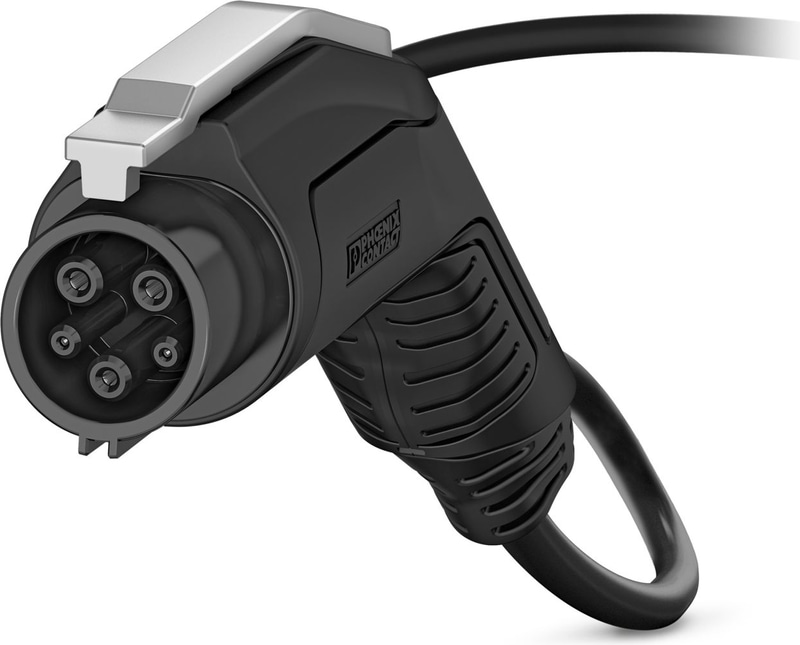

EV-T1G2C-1AC40A-25FT12ASBK11U - AC charging cable
CHARX connect, AC charging cable, with vehicle charging connector and open cable end, for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets, without protective cap, Type 1, SAE J1772, PHOENIX CONTACT logo, cable: 25 ft, black, straight, NOTE: Cable management may be required.
- Complete product range
- Convenient handling due to the ergonomic, triple award-winning design
- Available with your logo on request - for consistent branding of your charging station
- Longitudinal water tightness reliably prevents water ingress
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Tested in accordance with automotive standards LV124, LV214, and LV215-2
- Tested in accordance with EV Ready 37 requirements
- Laser-marked mating face in accordance with DIN EN 17186
Technical Specifications
Product properties
| Product family | CHARX connect |
| Application | for charging electric vehicles (EV) with alternating current (AC) via type 1 vehicle charging inlets |
| Application | for installation at charging stations for electromobility (EVSE) |
| Type | AC charging cable |
| Type | with vehicle charging connector and open cable end |
| Design | without protective cap |
| Affixed logo | PHOENIX CONTACT logo |
| Charging mode | AC level 2 |
| Charging standard | Type 1 |
Electrical properties
| Type of charging current | AC single-phase |
| Charging power | 10 kW |
| Charging current | 40 A |
Material specifications
| Color (Housing) | black (9005) |
| Color (Handle area) | black (9005) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
Cable/line
| Cable Length | 25 ft |
| Wiring standards/regulations | UL 62 |
| Cable weight | max. 327.00 kg/km |
| Cable Type | straight |
| Cable structure | 4 x 12 AWG 1 x 10 AWG + 5 x 22 AWG |
| External Cable Diameter | 14.50 mm |
| Outer sheath, material | TPE |
| Stripping length of the sheath | 70 mm ±5 mm |
| Stripping length | 70 mm ±5 mm |
| Cable resistance | ≤ 0.001025 Ω/m (based on a power core, at an ambient temperature of 20°C) |
| Bending Radius | min. 72.5 mm |
| Cable Length | 25 ft |
| Stripping length | 70 mm ±5 mm |
| External Cable Diameter | 14.50 mm |
| Wiring standards/regulations | UL 62 |
| Cable resistance | ≤ 0.001025 Ω/m (based on a power core, at an ambient temperature of 20°C) |
Connection in accordance with standard
| Normative cable length restrictions | NOTE: Cable management may be required. |
| Normative cable length restrictions | Cable management is required in the US if the cable length exceeds 7.5 m (IEC 61851-1). |
Standards
| Standards/regulations | SAE J1772 |
Accessories
EV-T1AC-PARK - CHARX connect, Charging connector holder, Accessories, for vehicle charging connectors on charging stations (EVSE), Type 1, SAE J1772, Front mounting, housing: black
