2411831
Official DistributorBy Rittal
SKU
RIT2411831
Weight
0.64 kg

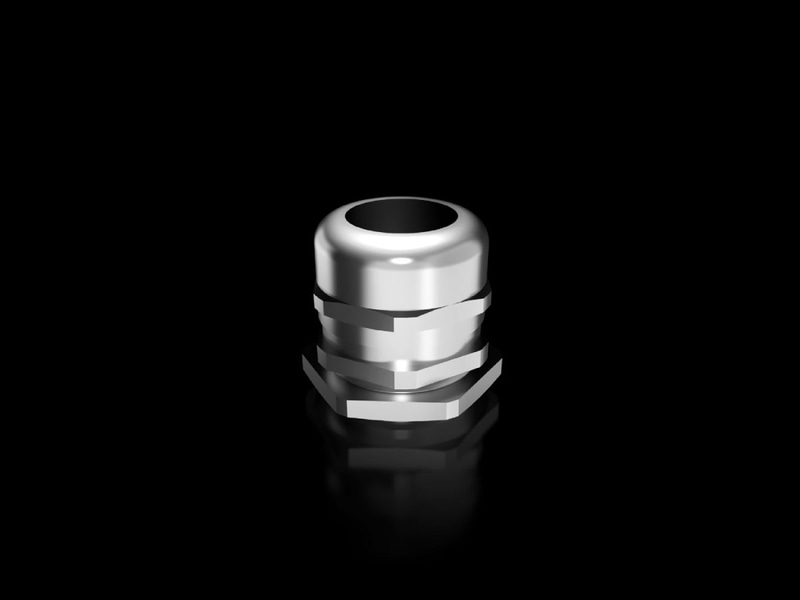

SZ Cable gland, brass, size: M25x1,5, for cables ø 11-17 mm
Technical Specifications
Dimensions
| Thread | M25 x 1.5 |
| Thread length | 8 mm |
Material
| Seal | CR/NBR |
| Benefits | Because the gland and lock nut are sold together in a single pack, this saves additional ordering and storage. |
| Surface finish | Nickel-plated |
| Protection category IP to IEC 60 529 | IP 68 (5 bar, 30 min.) |
| Thread | M25 x 1.5 |
| Thread length | 8 mm |
| Min. cable diameter | 11 mm |
| Max. cable diameter | 17 mm |
| Operating temperature range | -40 °C...100 °C |
| Torque | 14 Nm |
| Width Across Flats | 27 mm |
| Type rating according to UL 50E | Type 4X |
| Packaging unit | 10 pc(s). |
| Weight/packaging unit | 0.64 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177810068 |
| ETIM 7.0 | EC000441 |
| ECLASS 8.0 | 27149109 |
Why Proax for Rittal 2411831?
Proax is an authorized distributor of Rittal 2411831 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
