K8AKAS3100240VAC
Official DistributorBy Omron
SKU
OMRK8AKAS3100240VAC

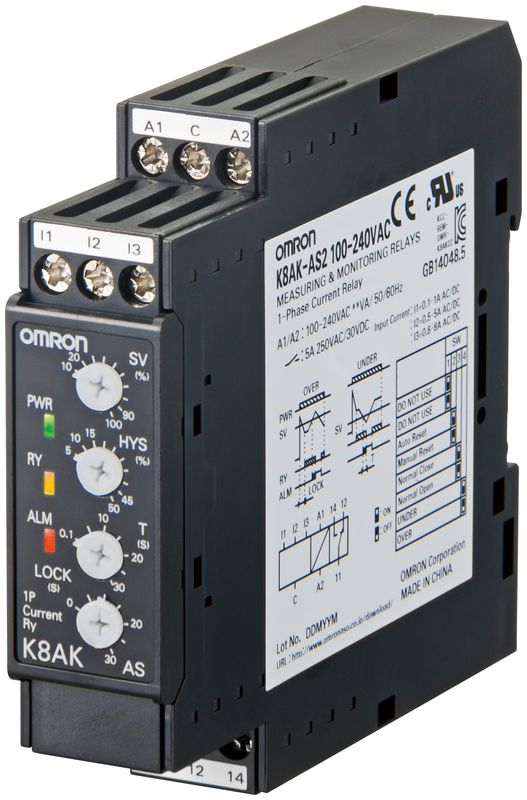

Single-phase current relay
These single-phase current relays monitor over- and undercurrents. Manual resetting and automatic resetting are supported by one relay. The start-up lock and operating time can be set separately. The relay warning status is easily monitored with the LED indicator.
- Single-phase current relay
- In 22.5 mm wide industrial housing
- Under or over control
- Supply voltages: 24 VAC/DC, 100 to 240 VAC
Documents
K8AK-AS Single-Phase Current Relay
Monitor overcurrents and undercurrents
These single-phase current relays monitor over- and undercurrents. Manual resetting and automatic resetting are supported by one relay. The start-up lock and operating time can be set separately. The relay warning status is easily monitored with the LED indicator.
- Single-phase current relay
- In 22.5 mm wide industrial housing
- Under or over control
- Supply voltages: 24 VAC/DC, 100 to 240 VAC
Technical Specifications
| Phase | 1-phase |
| Operation | Monitor overcurrent or undercurrent |
| Range | 10 to 100 A AC, 20 to 200 A AC |
| Outputs | Relay, SPDT, 5 A at 250 VAC/30 VDC |
| Supply Voltage | 100 -240 VAC |
| Case Material | PC and ABS |
| Mounting | DIN rail |
Why Proax for Omron K8AKAS3100240VAC?
Proax is an authorized distributor of Omron K8AKAS3100240VAC. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
