1415783
Official DistributorSKU
PHX1415783
MPN
H1X:AC
Weight
0.022 kg
Series H
H1X:AC - Housing

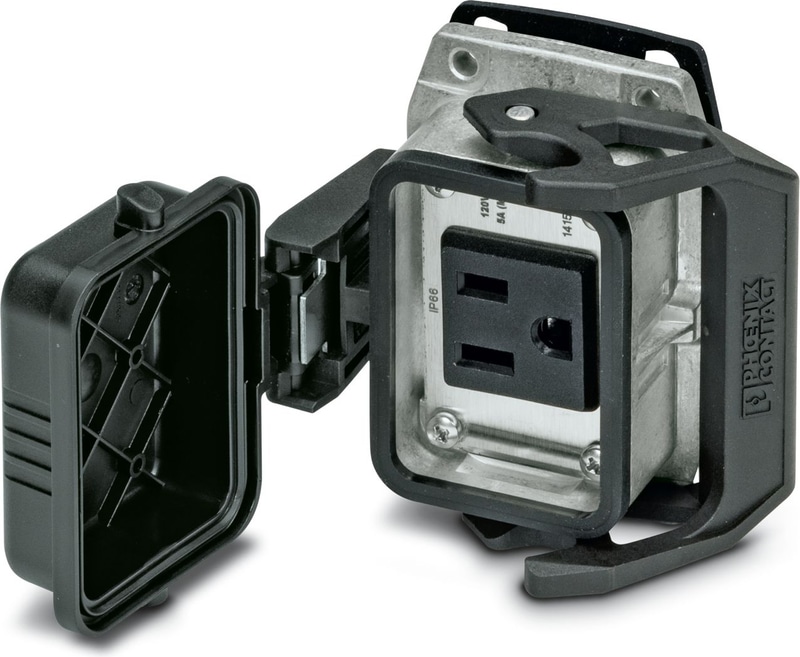

HEAVYPORT B6 panel mounting base, with single locking latch, with plastic protective cover, with stainless steel front plate connections, 1x 120 V AC outlet
- Good shielding in the event of electromagnetic interference
Technical Specifications
Product properties
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B6 |
| Protective cover | yes |
Electrical properties
| Rated voltage (III/3) | max. 125 V AC () |
| Rated current | 15 A () |
Connection data
| Tightening torque | 1.5 ... 2 Nm |
Dimensions
| Width | 53 mm |
| Height | 30.5 mm |
| Length | 80.5 mm |
| Drill hole distance, horizontal | 70 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
Installation dimensions
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 52 mm |
Material specifications
| Seal material | NBR, conductive |
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Material, protective cover | PA |
| Locking latch material | Polyamide |
| Impact strength | IK08 |
Connector
| Contact insert design | with 1x 120 V AC outlet Terminal 6.35 mm. AC outlet requires slip-on sleeves: Item No. 3240539 or 3240536 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C (Housing) |
Accessories
Why Proax for Phoenix Contact 1415783?
Proax is an authorized distributor of Phoenix Contact 1415783 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
