3451505
Official DistributorBy Rittal
SKU
RIT3451505
Weight
0.23 kg
Series Conductor terminal Push-in

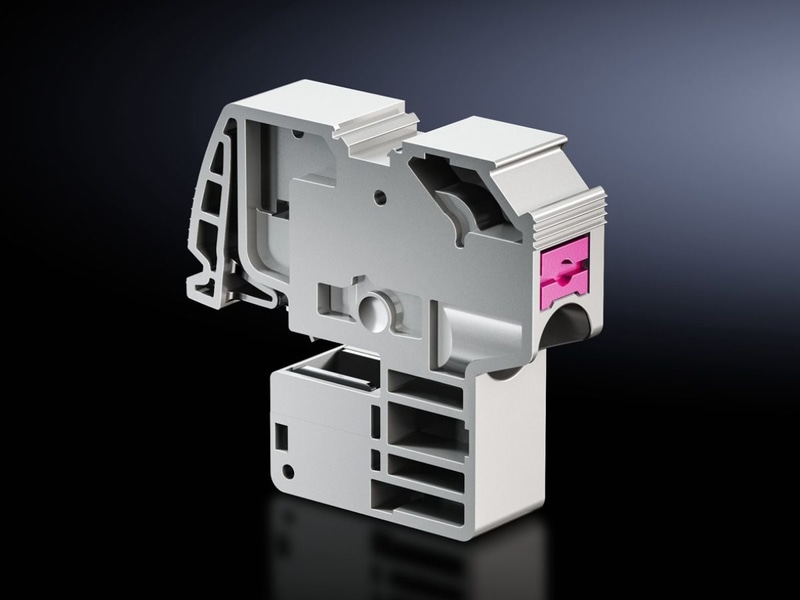

SV Conductor connection clamp, 1.5 – 16 mm² (Push-in), for bar thickness 5 mm
Conductor terminal Push-in
For connecting round conductors.
Technical Specifications
| Benefits | Maintenance-free |
| Applications | For use as a busbar pick-off terminals for L, N, or PE conductors in switchgear or control systems as well as conductor connection terminal in meter enclosures. |
| Function principle | Fully insulated terminal for tool-free connection of conductors |
| Material | Polyamide Fire protection corresponding to UL 94-V0 |
| Color | RAL 7042 |
| Test specification | IEC 60 999-1 |
| Connection of round conductors, fine wire with wire end ferrule | 1.5 ‐ 16 mm² |
| Connection of round conductors, fine wire without wire end ferrule | 1.5 ‐ 16 mm² |
| Connection of round conductors, multi-wire | 1.5 ‐ 16 mm² |
| Connection of round conductors, single-wire | 1.5 ‐ 16 mm² |
| For busbar thickness | 5 mm |
| Packaging unit | 10 pc(s). |
| Weight/packaging unit | 0.23 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177813977 |
| ETIM 7.0 | EC000001 |
| ECLASS 8.0 | 27141146 |
