4055122
Official DistributorBy Rittal
SKU
RIT4055122
Weight
0.093 kg
This product is Not Cancellable/Not Returnable

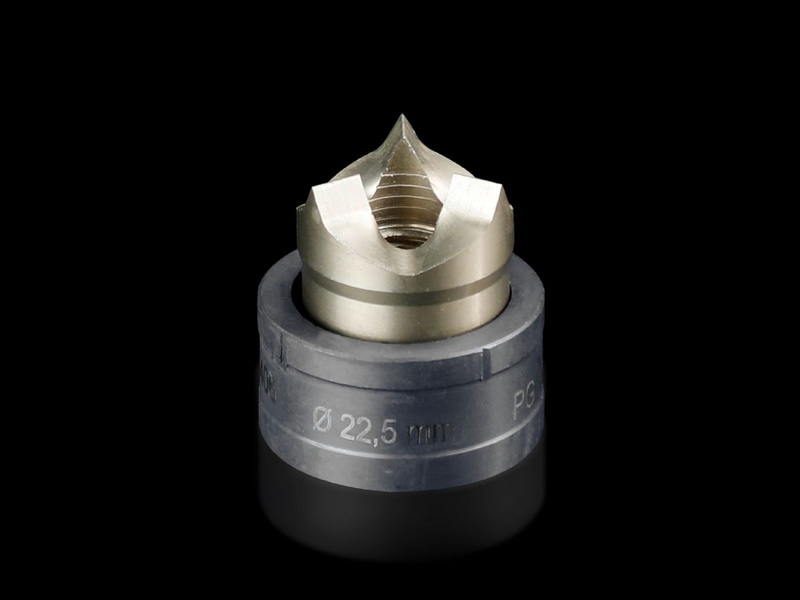

Splitter hole punch, round for stainless steel, round, with triple splitting
Supply includes
Die
Stamp
Round split plate punching machine For stainless steel, with 3-way pitch
For punching round cut-outs
Technical Specifications
| Version | With 3-way split |
| Max. material thickness that can be machined for stainless steel | 2 mm |
| Ø hole punch | 22.5 mm |
| Note | Tension screws with a ball bearing must be used when operating with a wrench |
| Suitable for hydraulic bolt order number | 4055.665 |
| Tension screw (Ø x L) | 11.1 x 60 mm |
| Hydraulic tension screw Ø | 11.1 mm 19 cm |
| Weight/packaging unit | 0.093 kg |
| Customs tariff number | 82073010 |
| EAN | 4028177808010 |
| ETIM 7.0 | EC000156 |
| ECLASS 8.0 | 21049047 |
Why Proax for Rittal 4055122?
Proax is an authorized distributor of Rittal 4055122 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
