H7ER-NV1
Official DistributorBy Omron
SKU
OMRH7ERNV1
Weight
0.171 kg

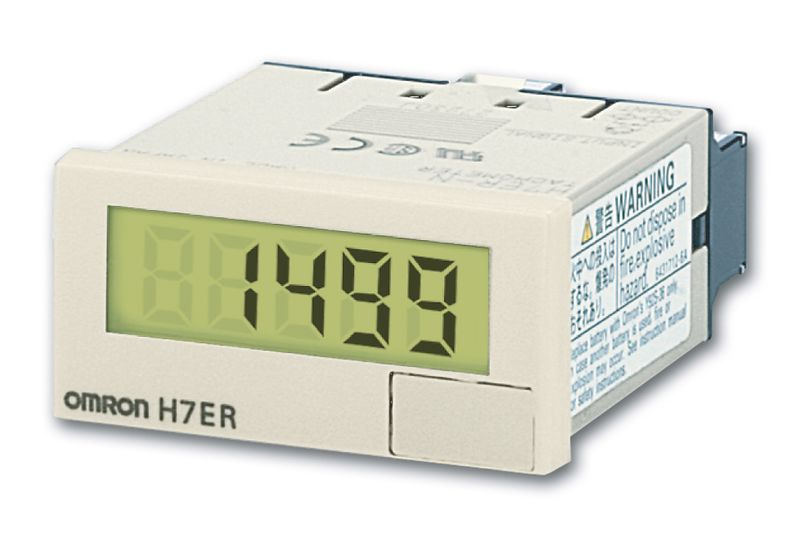

Series H7ER Series Tachometer
Tachometer, DIN 48x24 mm, self-powered, LCD, 5-digit, 1/60 ppr, VDC input, grey case
H7ER Series Tachometer
Self-powered tachometer
The H7ER series is available with a large 8.6mm character height display. It includes models with backlights for improved visibility in dimly lit places. The H7ER series RPM gauge digital tachometer displays revolutions up to five digits.
- Dual revolution display according to encoder resolution used; 1000 s–1/1000 min–1 or 1000.0 s–1 /1000.0 min–1
- Switchable dual revolution display type available (-NV1 models); extended up to 10000 min–1
- H 24 x W 48 x D 53.5mm
- 5 digits, 8.6mm character height
- Black or light-grey housing
- Dual revolution display
Technical Specifications
| Tachometer | Yes |
| Case Color | Light Gray |
| Count Input Type | PNP/NPN DC Voltage (4.5 to 30 VDC) |
| Display Digits | 5 |
| Maximum counting speeds | 10 kHz |
| Supply Voltage | Self powered |
| Cutout Size | 1/32 DIN 24x48 mm |
| Mounting | Flush Mounting |
Why Proax for Omron H7ER-NV1?
Proax is an authorized distributor of Omron H7ER-NV1. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | H7ERNV1 |
| Pack Size | 1 |
Recommended
Tachometer, 1/32DIN (48 x 24 mm), self-powered, LCD with backlight, 5-digit, 10/60/600ppr, VDC input, black case
Tachometer, 1/32DIN (48 x 24 mm), self-powered, LCD with backlight, 5-digit, 10/60/600ppr, VDC input, grey case- Tachometer, 1/32DIN (48 x 24 mm), self-powered, LCD, 4-digit, 1/60ppr, VDC input, black case
- Tachometer, 1/32DIN (48 x 24 mm), self-powered, LCD with backlight, 4-digit, 1/60ppr, VDC input, black case
