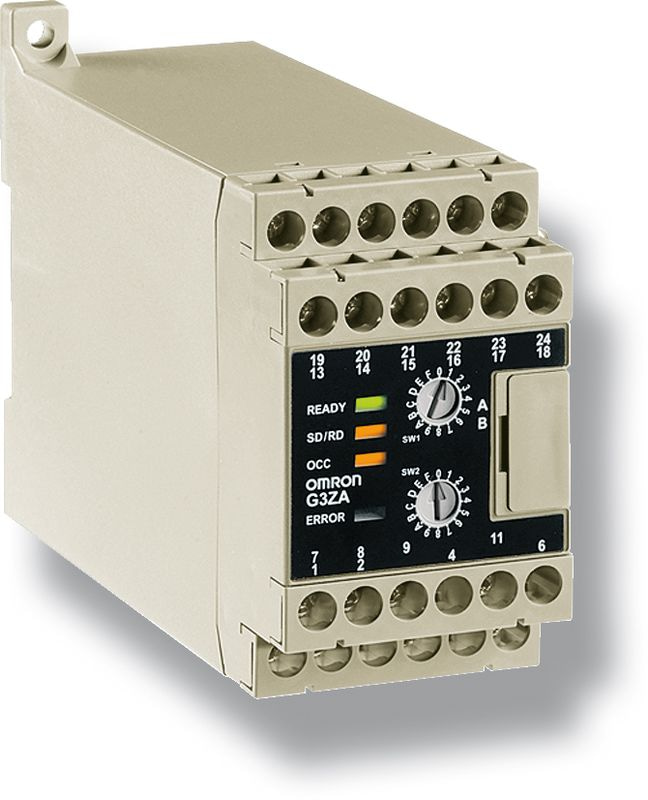

G3ZA8A203FLKUTU
Official DistributorBy Omron
SKU
OMRG3ZA8A203FLKUTU
Multi-channel power controller for smarter SSR usage
The G3ZA receives manipulated variables generated by control loops or manual settings via a simple-to-wire RS-485. It regulates the heater power with high precision by driving up to eight standard SSRs. Moreover, the offset control reduces peak power in the supply net.
- Multi-channel power controller
- Controls up to eight standard solid state relays
- Easy integration with PLC
- Compact size
- Available with heater alarms (four channels) or without (eight channels)
Technical Specifications
| Input Voltage | 100-240 VAC |
| Operating Input Voltage | 85-264 VAC |
| Applicable Load Voltage | 75-264 VAC |
| Zero Cross | Yes |
| Inrush Current | depends on SSR |
| Number of Control Channels | 8 |
| Trigger Output | 21 mA@12 VDC |
| Power Supply Voltage | 5.9 W max. |
| Output Specification | Optimum cycle control, Soft-start optimum cycle control, Three-phase optimum cycle control |
| Heater Burnout Detection | No |
| Communication | RS-485 port built in |
Why Proax for Omron G3ZA8A203FLKUTU?
Proax is an authorized distributor of Omron G3ZA8A203FLKUTU. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
Recommended
Power controller, 8 channels, 400-480 VAC, RS-485 host interface (CompoWay/F protocol)
