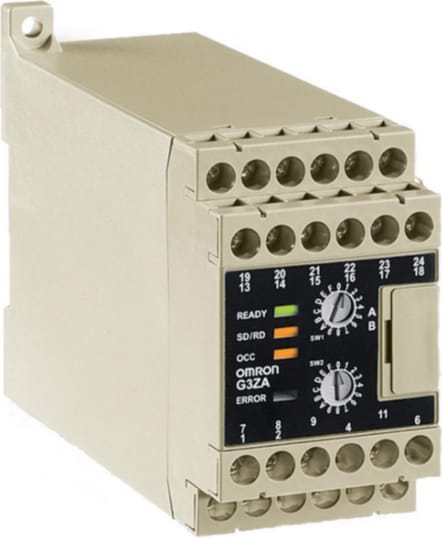

G3ZA-4H403-FLK-UTU
Official DistributorBy Omron
SKU
OMRG3ZA4H403FLKUTU
Series G3ZA Solid State Relays
Power controller, 4 channels with heater burnout detection, 400-480 VAC, RS-485 host interface (CompoWay/F protocol)
G3ZA Solid State Relays
Multi-channel power controller for smarter SSR usage
The G3ZA receives manipulated variables generated by control loops or manual settings via a simple-to-wire RS-485. It regulates the heater power with high precision by driving up to eight standard SSRs. Moreover, the offset control reduces peak power in the supply net.
- Multi-channel power controller
- Controls up to eight standard solid state relays
- Easy integration with PLC
- Compact size
- Available with heater alarms (four channels) or without (eight channels)
Technical Specifications
| Number of Control Channels | 4 |
| Trigger Output | 21 mA@12 VDC |
| Input Voltage | 100 - 240 VAC |
| Operating Input Voltage | 60 - 264 VAC |
| Power consumption | 5.9 W max. |
| Output Control Method | Optimum cycle control, Soft-start optimum cycle control, Three-phase optimum cycle control |
| Heater Burnout Detection | Yes |
| RS-485 Communication | Yes |
| Rated Load Voltage | 400-480 VAC |
| Applicable Load Voltage | 340-528 VAC |
| Load Current | depends on SSR |
| Inrush Current | depends on SSR |
| Communications | RS-485 port built in |
Why Proax for Omron G3ZA-4H403-FLK-UTU?
Proax is an authorized distributor of Omron G3ZA-4H403-FLK-UTU. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | G3ZA4H403FLKUTU |
| Pack Size | 1 |
