G3BD-103S-VD DC5-24
Official DistributorBy Omron
SKU
OMRG3BD103SVDDC524
This product is Not Cancellable/Not Returnable
Series G3B/G3BD Solid State Relays
5 to 110 V DC Rated Load Voltage Plug-In Solid State Relay
G3B/G3BD Solid State Relays

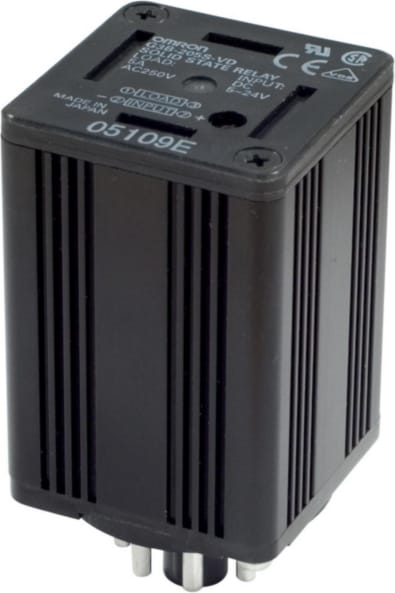

Plug-in type SSR, shape and size compatible with the MK power relay
This solid-state relay is compatible in shape and in size with the MK electromechanical relay and is mounted on a DIN-rail via sockets. There is also a DC-output model available with 3 to 125VDC load voltage range for high-voltage applications.
- 3 and 5A output current
- 5 to 110VDC/100 to 240VAC output voltages
- Compatible with MK electromechanical relays
- DIN-rail mounting via sockets
- Operation indicator to confirm input
Technical Specifications
| Special Function | Terminals compatible with MKS2P relay, VDE certified model |
| Input voltage range | 4 VDC - 30 VDC |
| Max Operating Input Voltage | 26.4 - 32 VDC |
| Input Impedance Range | 1.5 kΩ + 20%, - 10% |
| Max Rated Load Voltage | 110 - 240 VDC |
| Max Applicable Load Voltage | 125 - 220 VDC |
| Max Load Current | DC: 25 mA - DC: 3 A |
| Inrush Current | 12 A (10 ms) |
| Operation Indicator | Yes |
Why Proax for Omron G3BD-103S-VD DC5-24?
Proax is an authorized distributor of Omron G3BD-103S-VD DC5-24. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | G3BD103SVDDC524 |
| Pack Size | 1 |
