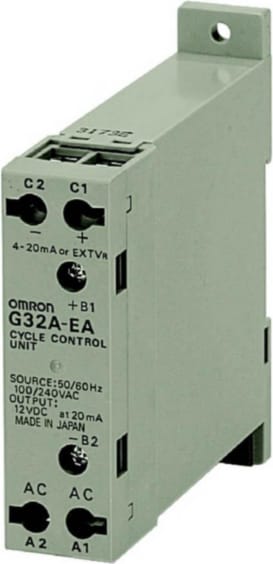

G32APC
Single channel power controller for G3PA solid state relays
Technical Specifications
| Type | Cycle Control Unit |
| Use With | G3PA |
| Number of Control Channels | 1 |
| Rated AC Load Voltage | 100 to 240 V |
| Applicable AC Load Voltage | 75 to 264 V |
| Load Current [Max] | 40 mA |
| Output Signals | 12 VDC ±15% |
| DC Leakage Current [Max] | 20 mA |
| AC Dielectric Strength (Input/Output) (50/60 Hz 1 min) | 1500 V |
| Operating Ambient Temperature [Min] | -30 ºC |
| Operating Ambient Temperature [Max] | 80 ºC |
| Width | 23.7 mm |
| Depth | 100 mm |
| Height | 100 mm |
Why Proax for Omron G32A-EA AC100-240?
Proax is an authorized distributor of Omron G32A-EA AC100-240. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | G32AEAAC100240 |
| Pack Size | 1 |
