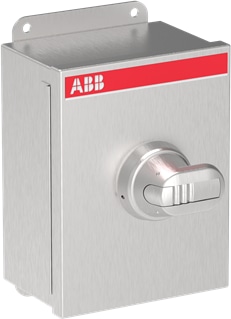

Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 30HP. General purpose current rating 60A. Stainless steel enclosure, NEMA Type 4/4X Watertight, Pistol handle. Interlocked cover. Defeatable interlocking.
Technical Specifications
Dimensions
| Product Net Width | 159.5 mm |
| Product Net Width | 6.28 in |
| Product Net Height | 241.3 mm |
| Product Net Height | 9.5 in |
| Product Net Depth / Length | 108.7 mm |
| Product Net Depth / Length | 4.28 in |
| Product Net Weight | 2.9 kg |
| Product Net Weight | 6.39 lb |
Technical
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 63 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 63 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 380415V20 A |
| Conventional Thermal Current (Ithe) | 60 A |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 1.4 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kA |
| Pollution degree | 3 |
| Handle color | Stainless Steel |
| Handle Type | Pistol handle |
| Position of Line Terminals | Top In - Bottom Out |
| Standards | IEC 60947-1, -3 / UL 508 |
| Number of Poles | 3 |
| Connecting Capacity Main Circuit | Screw Clamp 1.5…35 mm² |
| Connecting Capacity Main Circuit | Screw Clamp / PE Terminal 1pcs, 0.5…16 mm² |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | Blank / Blank |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Type | NEMA Type 4/4X Watertight |
| Enclosure Material | Stainless steel |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Terminal Type | Screw Terminals |
| Tightening torque | acc. IEC 60947-1 2 N·m |
| Mechanical Durability | 20000 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 15 Hp |
| Horsepower Rating UL/CSA | (480 V AC) 30 Hp |
| Horsepower Rating UL/CSA | (600 V AC) 30 Hp |
| Tightening torque | acc. IEC 60947-1 2 N·m |
| Tightening Torque UL/CSA | Main Circuit 18 in·lb |
