MPDB69561
Official DistributorBy Mersen
SKU
MERMPDB69561
Weight
1.678 kg

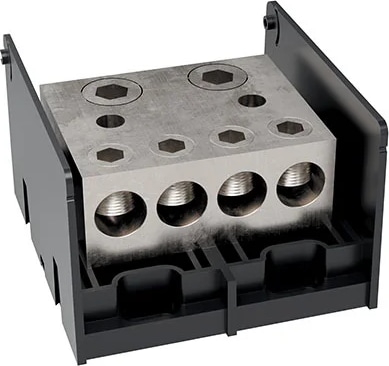

Open-Style PDB UL 1953 1000V 890A Tin‑plated Aluminum – 1090A 1‑Pole 2 – 4 openings; 1000‑250 --- 500‑#4 Box to Box
Technical Specifications
| Rated Voltage Ac Ul | 1000 V |
| Rated Voltage Dc Ul | 1000 V |
| Frequency | 50/60 Hz |
| Number of Poles | 1-Pole |
| Body Insulating Material | Glass Filled Polycarbonate |
| Ampere Rating Al | 890 A |
| Ampere Rating Cu | 1090 A |
| Connector Material | Tin-plated Aluminum |
| primary openings per pole | 2 |
| secondary openings per pole | 4 |
| primary connector type | Box |
| secondary connector type | Box |
| product dimensions | 134.9 mm x 144.8 mm x 90.2 mm |
