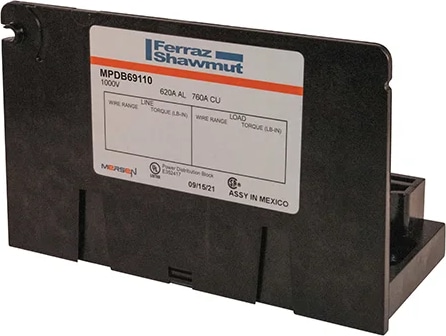

MPDB69110
Official DistributorBy Mersen
SKU
MERMPDB69110
Weight
0.771 kg
Open‑Style PDB UL 1953 1000V 620A Tin‑plated Aluminum – 760A Adder 2 – 12 openings; 500‑#4 — #4‑#14 Box to Box
Technical Specifications
| Rated Voltage Ac Ul | 1000 V |
| Rated Voltage Dc Ul | 1000 V |
| ac or dc | AC/DC |
| Number of Poles | Adder |
| Installation Mounting | Direct Screw Mount |
| Sell Pack Quantity | 6 EA |
| sell pack weight | 4.858 kg |
| Body Insulating Material | Glass Filled Polycarbonate |
| Product group | Power Distribution Blocks |
| Product Width | 65.5 mm |
| Product Length | 144.8 mm |
| Product Height | 90.2 mm |
| Sell Pack Width | 101.6 mm |
| Sell Pack Length | 144.5 mm |
| sell pack height | 450.8 mm |
| Ampere Rating Al | 620 A |
| Ampere Rating Cu | 760 A |
| Connector Material | Tin-plated Aluminum |
| item number | MPDB69110 |
| ean upc code | 782001452490 |
| frequency hz | 50/60 Hz |
| rosh compliant | Yes |
| short circuit rating class cc | 100 kA with 30 A Fuse |
| short circuit rating class g | 100 kA with 60 A Fuse |
| short circuit rating class j | 100 kA with 600 A Fuse |
| short circuit rating class l | 100 kA with 800 A Fuse |
| short circuit rating class rk1 | 100 kA with 600 A Fuse |
| short circuit rating class rk5 | 100 kA with 600 A Fuse |
| Short Circuit Rating Standalone | 10 kA |
| short circuit rating class t | 100 kA with 800 A Fuse |
| Number Of Openings Per Pole Primary | 2 |
| Number Of Openings Per Pole Secondary | 12 |
| Connector Type Primary | Box |
| Connector Type Secondary | Box |
| hex screw size type primary | 13/16-16 x 1.06 |
| hex screw size type secondary | 5/16-24 x 0.38 |
| hole diameter primary | 0.88 in |
| hole diameter secondary | 0.27 in |
| torque rating primary | 500-#4 500 |
| torque rating secondary | #4-#8 40; #10-#14 35 |
| Wire Range Primary | 500-#4 |
| Wire Range Secondary | #4-#14 |
