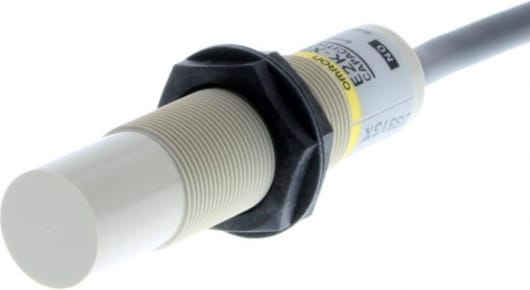

Proximity sensor, capacitive, M18, unshielded, 8 mm, AC, 2-wire, NO, 5 m cable
Documents
E2K-X General Purpose Threaded AC 2-wire Capacitive Sensor
Threaded, Cylindrical Capacitive Proximity Sensor
The E2K-X family combines the application versatility of a capacitive style proximity sensor with the flexibility of a threaded cylindrical sensor to detect metallic and non-metallic objects.
- AC 2-wire & DC 3-wire models
- Available in M12, M18 and M30 sized barrels
- Heat-resistant ABS plastic housing and IP66 enclosure rating
- Non-contact detection of metallic and non-metallic objects including water, oil, glass, plastic and wood
- Detects liquid level inside non-metallic containers
Technical Specifications
| Type | Proximity Sensor |
| Mounting Type | Bracket with 18 mm Mounting Hole or M18x1 Threaded Hole |
| Shield Type | Unshielded |
| Output Type | 2-Wire Alternating Current (AC) |
| Sensor Type | Capacitive |
| Range | 0 to 8 mm |
| AC Voltage | 100 to 220 V |
| Spare Parts | M18-PHWS |
| Special Function | General-Purpose Threaded Capacitive Sensor |
| Size | M18 |
| Electrical connection | 5 m Polyvinyl Chloride (PVC) Cable |
| Polyvinyl Chloride (PVC) Cable Length | 5 m |
| Contact Configuration | Normally Open (NO) |
| Threaded Length | 40 mm |
| Overall Length | 80 mm |
| Case Material | Heat Resistant Acrylonitrile Butadiene Styrene (ABS) |
| Sensing Distance | 8 mm |
