E2EY-X8C1
Official DistributorBy Omron
SKU
OMRE2EYX8C1
Weight
0.428 kg

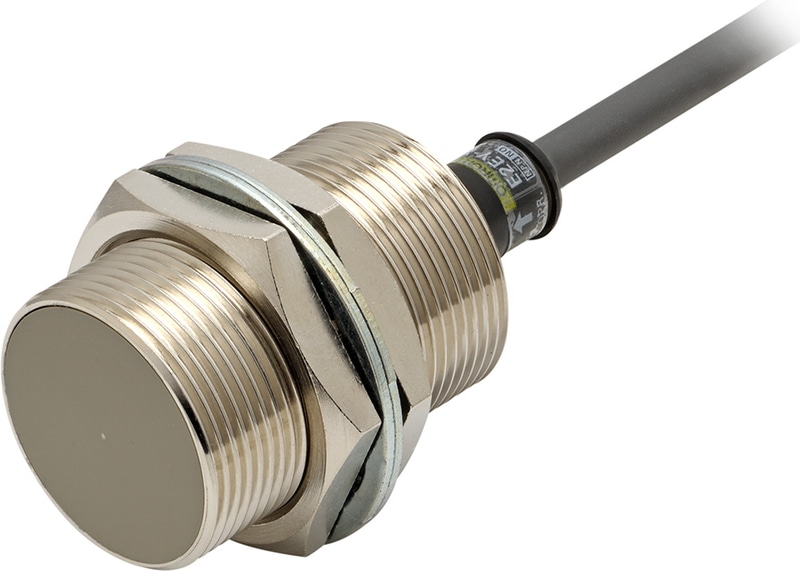

Proximity sensor, aluminium detection, M30, shielded, 8mm, DC, 3-wire, NPN-NO, 2m cable
Documents
E2EY Non-Ferrous Metal Only Proximity Sensor
DC 3-Wire Proximity Sensor Threaded Short Barrel for Aluminum and Non-Ferrous Metals
E2EY inductive proximity sensors are DC 3-wire NPN non-ferrous metal detection proximity sensors in M18 or M30 sizes.
The E2EY Inductive Proximity Sensor family offers the reliable sensing of Aluminum and Non-Ferrous metals such as copper and brass, while ignoring ferrous metals. Offered in the convenience of a shielded M18 and M30 threaded cylindrical barrel with sensing distances of 4mm and 8mm respectively, the sensors are rated IP67.
Technical Specifications
| Size | M30 |
| Sensing Distance | 8 mm |
| Shielded | Shielded |
| Connection | PVC cable |
| Output | NPN |
| Operation | NO/NC selectable |
| Supply Voltage | 12 to 24 VDC |
| Case Material | Nickel-plated brass |
| Threaded Length (mm) | 42 |
| Overall length (mm) | 60 |
| Mounting | Bracket with 30 mm mounting hole or M30x1.5 threaded hole. |
| Cable Length | 2 m |
Why Proax for Omron E2EY-X8C1?
Proax is an authorized distributor of Omron E2EY-X8C1. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E2EYX8C1 |
| Pack Size | 1 |
