SKU

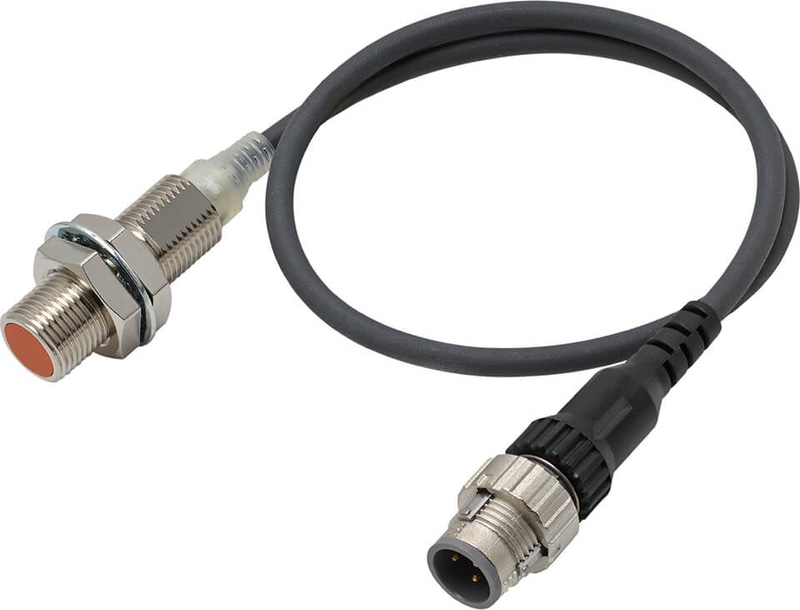

Proximity sensor, inductive, M12, shielded, 3mm, DC 2-wire no polarity, NO, M12 pig-tail 0.3m
Documents
E2E-U Oil Resistant Standard Proximity Sensor
Oil Resistant Industive Sensor in Cylindrical Brass Housing
The E2E-U family offers tested oil resistance on commonly used oils in the automotive industry for reliable long-life operation in automation assembly lines.
- Oil Resistant PUR Cable
- M8, M12, M18 and M30 standard sizes
- IP67 (Water and Oil Resistant)
Technical Specifications
| Size | M12 |
| Sensing Distance | 3 mm |
| Shielded | Shielded |
| Connection | M12 4-pin pigtail connector |
| Output | 2 Wire DC |
| Operation | NO |
| Supply Voltage | 12 to 24 VDC |
| Case Material | Nickel-plated Brass |
| Threaded Length (mm) | 33 |
| Overall length (mm) | 47 |
| Mounting | Bracket with 12 mm mounting hole or M12x1 threaded hole. |
| Cable Length | 0.3 m |
Why Proax for Omron E2E-X3D1-M1TGJ-U 0.3M?
Proax is an authorized distributor of Omron E2E-X3D1-M1TGJ-U 0.3M. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E2EX3D1M1TGJU03M |
| Pack Size | 1 |
