Official DistributorBy ABB
SKU
MPN
1SAM201912R1010
Weight
0.263 kg

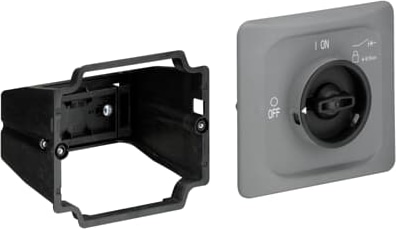

DMS132-G door mounting kit is suitable for manual motor starter MS116/MS132. The combination of manual motor starter and door mounting kit allows to setup all required control and protection functions for single machine installations. The door mounting kit has a IP65 degree of protection and can be easily integrated in cubicals and machines. Additional mounting of auxiliary and signalling contacts, shunt trips and undervoltage release is possible. The handle is 3-times lockable in OFF position.
Documents
Technical Specifications
Dimensions
| Product Net Width | 137 mm |
| Product Net Height | 121 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.17 kg |
Technical
| Contact Position Indication | ON / OFF / TRIP |
| Actuator Type | Rotary Handle |
| Color | grey / black |
| Degree of Protection | IP65 |
| Standards | CSA 22.2 No. 14 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-4-1 |
| Standards | UL 508 |
| Suitable for | MS116 |
| Suitable for | MS132 |
| Suitable for Product Class | Manual Motor Starter |
| Accessory Group | Mechanical |
| Accessory Type | Door Mounting Kit |
| Remarks | For detailed specification see installation instruction |
Technical UL/CSA
| Enclosure Type UL/CSA | 12 |
Why Proax for ABB DMS132-G?
Proax is an authorized distributor of ABB DMS132-G and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DMS132G |
| Pack Size | 1 |
