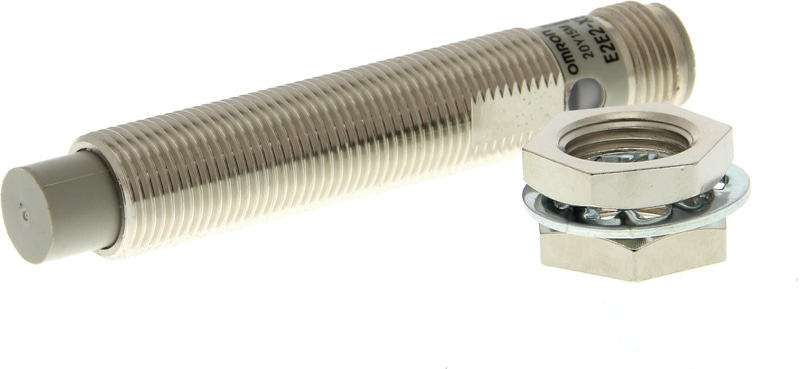

Proximity sensor, long body, inductive, M12, unshielded, 5 mm, AC, 2-wire, NO, M12 Connector
Documents
E2E2 AC 2-wire Long Barrel Proximity Sensor
Proximity Sensor with Threaded Nickel Plated Brass Long Barrel Housing
Long-Barrel AC 2-Wire Proximity Sensors Built for Rugged Duty.
- Improved nickel-plated brass (NPB) barrel strength
- IP67, 1200 psi water washdown rated
- Up to 25% longer sensing range than CENELEC standards
- High visibility indicator
- Barrel sizes: M12, M18 and M30, Shielded and Unshielded
- Voltage range: 24-240 VAC. Output: NO or NC
Technical Specifications
| Type | Proximity Sensor |
| Output Type | 2-Wire Alternating Current (AC) |
| Sensor Type | Inductive |
| Range | 0 to 5 mm |
| AC Voltage | 24 to 240 V |
| Spare Parts | M12-MHWS |
| Special Function | High-Quality Long Barrel Threaded Cylindrical Prox Conforms to Standard CENELC Sensing Distance. |
| Size | M12 |
| Shield Type | Unshielded |
| Contact Configuration | Normally Open (NO) |
| Case Material | Nickel-Plated Brass |
| Threaded Length | 48 mm |
| Overall Length | 70 mm |
| Mounting | Bracket with 12 mm Mounting Hole or M12x1 Threaded Hole |
| Mounting Hole Size | 12 mm |
| Industry Standards | CENELC |
| Electrical connection | M12 4-Pin Connector (Alternating Current (AC) 3-Pin Dual Keyway) |
| Sensing Distance | 5 mm |
Why Proax for Omron E2E2-X5MY1-M4?
Proax is an authorized distributor of Omron E2E2-X5MY1-M4. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | E2E2X5MY1M4 |
| Pack Size | 1 |
