E2CY-SD11 2M
Official DistributorBy Omron
Documents

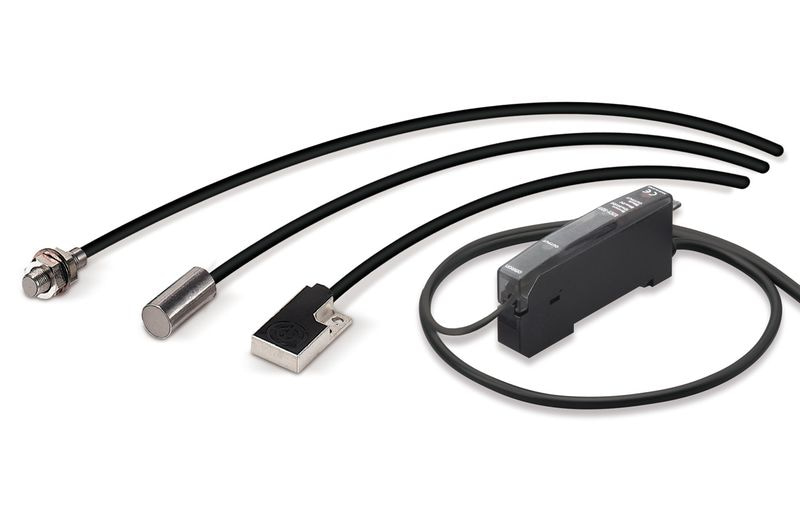

E2CY Separate Amplifier Non-Ferrous Metal Proximity Sensor
Compact Proximity Sensor For Aluminum Detection
The simple one-touch teach function for simple sensitivity adjustment makes for easy set-up and installation to keep your commissioning costs low. The amplifier-sensor combination can detect differences between object types, position and distance within a range at the same time you can monitor the operation using the graph indicator lights and diagnostic output. While the sensing heads are rated for IP67 washdown, sensing distances can range from 1.5mm, 2mm to 3mm.
| Sensing Distance | Does not apply, see applicable sensor head |
| Connection | PVC cable |
| Output | NPN |
| Operation | NO/NC selectable |
| Supply Voltage | 12 to 24 VDC |
| Case Material | Plastic |
| Threaded Length (mm) | Does not apply, see applicable sensor head |
| Overall length (mm) | Does not apply, see applicable sensor head |
| Mounting | DIN track mounting |
| Cable Length | 2 m |
Why Proax for Omron E2CY-SD11 2M?
Proax is an authorized distributor of Omron E2CY-SD11 2M. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | E2CYSD112M |
| Pack Size | 1 |
