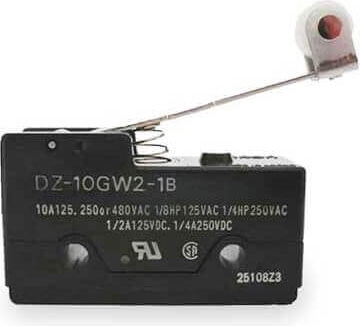

DZ-10GW2-1B
Official DistributorBy Omron
SKU
OMRDZ10GW21B
Weight
0.09 kg
Basic switch, hinge roller lever, 10 A, DPDT, screw terminals
Documents
DZ Series Specialty Basic Switch
DPDT basic switch for controlling two independent circuits
DZ switches are ideal for switching circuits operating on two voltages and for controlling two independent circuits. DZ is interchangeable with Omron Z basic switches, as both switches are identical in mounting-hole dimensions, mounting pitch and pin-plunger position.
- 25.4 mm mounting hole pattern.
- Offered in a variety of actuators such as pin plunger, hinge lever and roller lever.
- Ideal for switching the circuits operating on two different voltages, and for controlling two independent circuits
- Interchangeable with OMRON Z Basic Switches, as both switches are identical in mounting hole dimensions, mounting pitch and pin plunger position
- IP00 rated
Technical Specifications
| Special Function | Two Circuit Switch |
| Rated Load | 10 A at 250 VAC |
| Actuator Type | Roller lever |
| Switch Type | DPDT |
| Inrush Current | Up to 30 A at NC, Up to 15 A at NO |
| Mounting Hole Size | 4.2 mm |
| Terminal Type | Screw terminal |
| Electrical Operations Minimum | 500,000 operations |
| Mechanical operations minimums | 20 operations/minute max. |
| Mechanical operations | 240 operations/minute max. |
Why Proax for Omron DZ-10GW2-1B?
Proax is an authorized distributor of Omron DZ-10GW2-1B. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DZ10GW21B |
| Pack Size | 1 |
