Series D4E-N Small Enclosed Switch

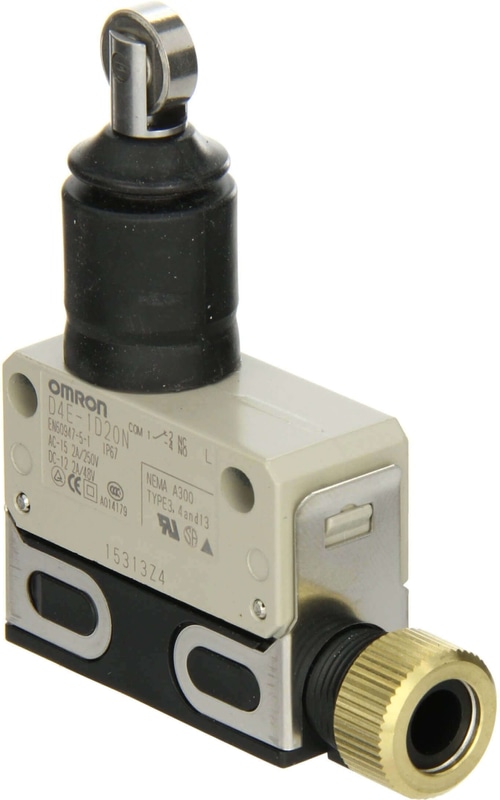

Limit switch, slim sealed, screw terminal, general purpose, sealed roller plunger
Documents
D4E-N Small Enclosed Switch
A small enclosed limit switch with increased service life
The D4E-N family is a slim, compact line up of enclosed switches which offers extra protection in harsh environments.
- 33 mm mounting hole pattern
- Flat springs with an improved lever ratio of the built-in switch ensure smooth snap action and long life expectancy
- Protection cover protects the built-in switch from dust and oil. Plunger incorporates a tough seal cap that lasts for a long time
- One touch connector eliminates need for tedious wiring operations and reduces downtime for wiring and maintenance (models with standard, easy-to-use screw terminals are also available)
- Minute load model with gold cladding is optimal for electronic control
- Molded terminal types as well as molded terminal types with operating indicator lamps are available for screw terminal systems
Technical Specifications
| Rated Load | 5 A at 125 VAC |
| Actuator Type | Sealed roller plunger |
| Switch Type | SPDT |
| Terminal Connection | Screw terminal |
| Electrical Operations Minimum | 500,000 operations |
| Mechanical operations minimums | 10,000,000 operations |
Why Proax for Omron D4E-1D20N?
Proax is an authorized distributor of Omron D4E-1D20N. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | D4E1D20N |
| Pack Size | 1 |
