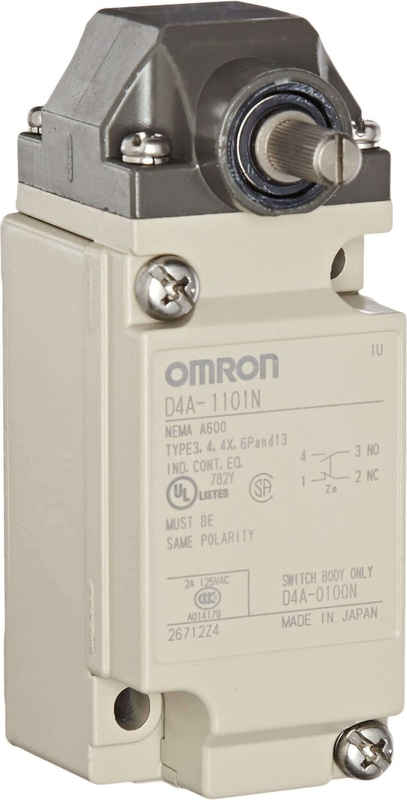

D4A-1101-N
Official DistributorBy Omron
10A Limit switch, 125V, SPDT double-break, 1 NO/1 NC contacts, without indicator, standard roller lever, 1/2-14 NPT conduit. Supplied as a complete assembly including the receptacle (D4A-1000N), switch box (D4A-0100N), head (D4A-0001N), and standard roller lever already installed.
The correct pole/throw configuration (SPDT)
The double-break feature (which is correct)
Contact configuration (1 normally open, 1 normally closed)
Conduit size specification
Maintains all the other accurate information (no indicator, standard roller lever)
Documents
D4A-N Series General-Purpose Limit Switch
A robust metal housing limit switch with a wide operating temperature range
- 29.4 mm x 59.5 mm mounting hole pattern
- Wide variety of head shapes, including Roller Lever, Plunger, Flexible Rod, and Fork Lock Lever Switches
- A double seal on the head, a complete gasket cover, and other features ensure a better seal (meets UL NEMA 3, 4, 4X, 6P, 12, 13)
- Wide operating temperature of -40°C/F- 100°C/212°F (standard type)
- Models with fluoro-rubber available for greater resistance to chemicals
- Block mounting method also reduces downtime for maintenance
- DPDT, double-break models available for complex operations
- Approved by UL, CSA, and CCC
- Available LED operation indicator
- IP67 rated
| Rated Load | 10 A at 250 VAC |
| Actuator Type | Order lever separately |
| Switch Type | SPDT double break |
| Terminal Connection | Screw terminal |
| Conduit Opening | 1/2-14 NPT |
| Electrical Operations Minimum | 1,000,000 operations |
| Mechanical operations minimums | 50,000,000 operations |
Why Proax for Omron D4A-1101-N?
Proax is an authorized distributor of Omron D4A-1101-N. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | D4A1101N |
| Pack Size | 1 |
