IPC4111
Official DistributorBy ABB
SKU
ABBIPC4111
MPN
7TAH006420R0032

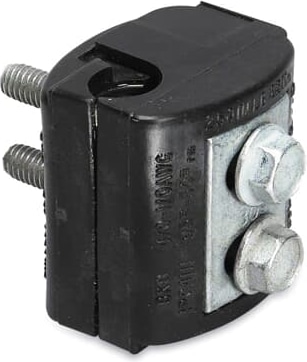

Type IPC - Talon Insulation Piercing Connector for Conductor Range Main: 4/0-1/0 AWG, 95-50 MM sq., Tap: 1/0-6 AWG, 50-16 MM sq.
Technical Specifications
Additional Information
| Brand / Label | Blackburn |
| Color | Black |
| Effective Date | 19991027 |
| Product Name | "TERMINALS, ELECTRICAL SPLICES" |
| Product type | Insulated Conductor Connectors |
Additional Information
| Special Functions | For copper-to-copper, copper-to-aluminum and aluminum-to-aluminum applications (insulated conductor only). Performs as splice or tab for non-tension applications up to 600 volts, depending on size of connector. |
| Standards | UL E9809 |
| Temperature Range | Max 90 °C |
| Voltage Rating | 300 V |
Why Proax for ABB IPC4111?
Proax is an authorized distributor of ABB IPC4111 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
