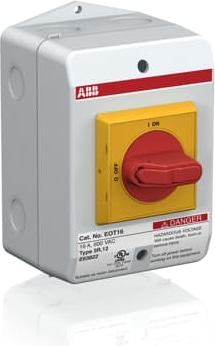

Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 10HP. General purpose current rating 16A. Plastic enclosure, NEMA Type 3R Rainproof, 12 Indoor, Selector handle. Interlocked cover. Defeatable interlocking.
Technical Specifications
Dimensions
| Product Net Width | 100 mm |
| Product Net Width | 3.94 in |
| Product Net Height | 161.4 mm |
| Product Net Height | 6.35 in |
| Product Net Depth / Length | 81 mm |
| Product Net Depth / Length | 3.19 in |
| Product Net Weight | 0.59 kg |
| Product Net Weight | 1.3 lb |
Technical
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 16 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 16 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 380415V10 A |
| Conventional Thermal Current (Ithe) | 16 A |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V AC) 0.71 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
| Pollution degree | 3 |
| Handle color | Red / Yellow |
| Handle Type | Selector handle |
| Position of Line Terminals | Top In - Bottom Out |
| Standards | IEC 60947-1, -3 / UL 508 |
| Number of Poles | 3 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75...10 mm² |
| Connecting Capacity Main Circuit | Screw Clamp / PE Terminal 1pcs, 0.5…16 mm² |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | 2x(ø0.5 / 12.7+ø0.75 / 19.1) |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Type | NEMA Type 3R Rainproof |
| Enclosure Material | Plastic |
| Mounted Auxiliary Contacts | 1 NO, 0 NC |
| Terminal Type | Screw Terminals |
| Tightening torque | acc. IEC 60947-1 0.8 N·m |
| Mechanical Durability | 20000 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 16 A |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 5 Hp |
| Horsepower Rating UL/CSA | (480 V AC) 10 Hp |
| Horsepower Rating UL/CSA | (600 V AC) 10 Hp |
| Tightening torque | acc. IEC 60947-1 0.8 N·m |
| Tightening Torque UL/CSA | Main Circuit 7 in·lb |
