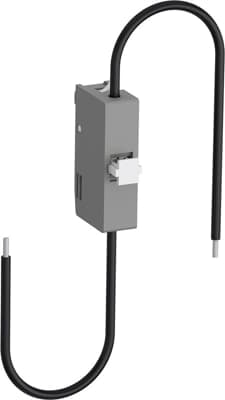

CB5-10
By ABB
SKU
ABBCB510
MPN
1SBN010013R1010
Weight
0.012 kg
CB5-01 is an impulse contact blocks are designed for use in enclosures, in association with an adjustable mechanical pushbutton. CB5-01:
• includes a N.C. contact with a light grey actuator ("OFF" function)
• is equipped with 2 connecting leads 0.5 mm² with end, approximately 18 cm long
• is clipped onto the front face of the contactors.
Technical Specifications
Dimensions
| Product Net Width | 9.8 mm |
| Product Net Depth / Length | 21.6 mm |
| Product Net Height | 36 mm |
| Product Net Weight | 0.012 kg |
Technical
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 1P |
| Standards | UL 508, CSA 22.2 No. 14 |
| Rated Operational Voltage | Auxiliary Circuit 600 V |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (220 / 240 V) 3 A |
| Terminal Type | Screw Terminals |
| Suitable for | AF09 |
| Suitable for | AF09Z |
| Suitable for | AF12 |
| Suitable for | AF12Z |
| Suitable for | AF16 |
| Suitable for | AF16Z |
| Suitable for | AF26 |
| Suitable for | AF26Z |
| Suitable for | AF30 |
| Suitable for | AF30Z |
| Suitable for | AF38 |
| Suitable for | AF38Z |
| Suitable for | AF40 |
| Suitable for | AF52 |
| Suitable for | AF65 |
| Suitable for | AF80 |
| Suitable for | AF96 |
| Suitable for | AFC09 |
| Suitable for | AFC12 |
| Suitable for | AFC16 |
| Suitable for | AFC26 |
| Suitable for | AFC30 |
| Suitable for | AFC38 |
| Suitable for | AF45 |
| Suitable for | AF50 |
| Suitable for | AF63 |
| Suitable for | AF75 |
| Suitable for | A9 |
| Suitable for | A12 |
| Suitable for | A16 |
| Suitable for | A26 |
| Suitable for | A30 |
| Suitable for | A40 |
| Suitable for | A45 |
| Suitable for | A50 |
| Suitable for | A63 |
| Suitable for | A75 |
| Suitable for | A95 |
| Suitable for | A110 |
| Suitable for | AL9 |
| Suitable for | AL9Z |
| Suitable for | AL12 |
| Suitable for | AL12Z |
| Suitable for | AL16 |
| Suitable for | AL16Z |
| Suitable for | AL26 |
| Suitable for | AL30 |
| Suitable for | AL40 |
| Suitable for | AE45 |
| Suitable for | AE50 |
| Suitable for | AE63 |
| Suitable for | AE75 |
| Suitable for | TAL9 |
| Suitable for | TAL12 |
| Suitable for | TAL16 |
| Suitable for | TAL26 |
| Suitable for | TAL30 |
| Suitable for | TAL40 |
| Suitable for | TAE45 |
| Suitable for | TAE50 |
| Suitable for | TAE75 |
| Suitable for | GA75 |
| Suitable for | GAE75 |
| Suitable for | UA16 |
| Suitable for | UA26 |
| Suitable for | UA30 |
| Suitable for | UA50 |
| Suitable for | UA63 |
| Suitable for | UA75 |
| Suitable for | UA95 |
| Suitable for | UA110 |
| Product Name | Impulse Contact Block |
Why Proax for ABB CB5-10?
Proax is an authorized distributor of ABB CB5-10 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | CB510 |
| Pack Size | 1 |
