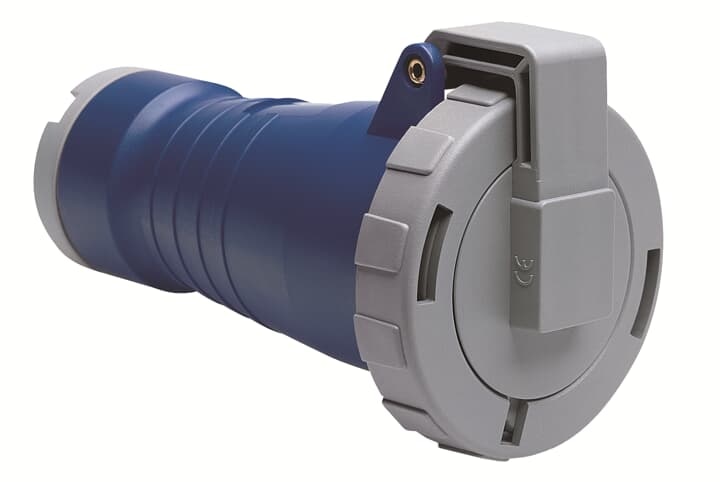

ABB332C6W
Official DistributorBy ABB
SKU
ABBABB332C6W
IEC Connector 30A 2P3W 220-240V Clock Position Of Grounding Contact 6 hour Color code Blue
Technical Specifications
Technical
| Standards | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Function | Connector |
| Suitable for Product Class | IEC Industrial Plugs and Sockets |
| Rated Voltage (Ur) | 200 ... 250 V |
| Rated Current (In) | 30 A |
| Frequency (f) | 50 Hz, 60 Hz |
| Number of Poles | 3 |
| Plug Angle | Straight |
| Connection Type | Screw Clamp |
| Protection Type | Watertight |
| Clock Position Of Grounding Contact | 6 hour |
| Enclosure Material | Thermoplastic polyester (PBT) |
| Housing Material | Thermoplastic (PBT) |
| Material | Plastic |
| Additional Information | 2P+E |
| Recommended Screw Driver | PH2 |
| Cable Entry Position | Anti-kink sleeve |
| RAL Number | RAL 7001 - Silver Grey |
| Color | Blue |
| Cable Cross-Section | 2.5 ... 6 mm² |
Environmental
| Ambient Temperature | -25 ... 40 °C |
| Degree of Protection | IP67, IP69 |
| RoHS Status | Following EU Directive 2011/65/EU |
| SCIP | ae13d671-077b-4ceb-98c1-00d4b045a433 Czech Republic (CZ) |
Dimensions
| Product Net Width | 92 mm |
| Product Net Height | 102 mm |
| Product Net Depth / Length | 177 mm |
| Product Net Weight | 0.461 kg |
