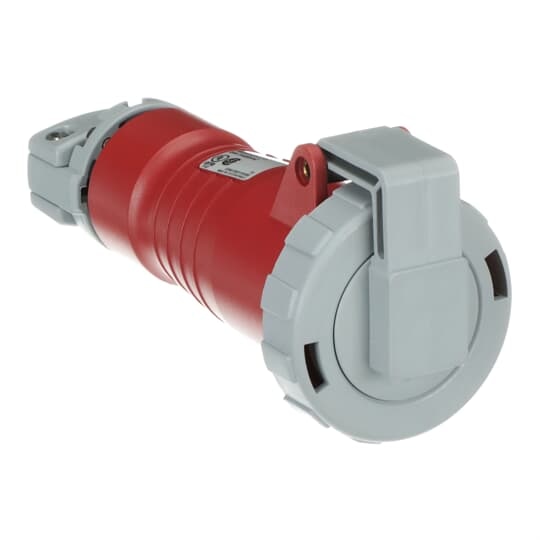

ABB320C7W
Official DistributorBy ABB
SKU
ABBABB320C7W
IEC Connector 20A 2P3W 480V Clock Position Of Grounding Contact 7 hour Color code Red, UL/CSA approved and CE compliant
Technical Specifications
Technical
| Standards | UL 1682, 1686 / CSA C22.2 No. 182.1-13 |
| Function | Connector |
| Suitable for Product Class | IEC Industrial Plugs and Sockets |
| Rated Voltage (Ur) | 480 V |
| Rated Current (In) | 20 A |
| Frequency (f) | 50 Hz, 60 Hz |
| Number of Poles | 3 |
| Plug Angle | Straight |
| Tightening torque | WireClamp0.8 N·m |
| Connection Type | Screw |
| Protection Type | Watertight |
| Clock Position Of Grounding Contact | 7 hour |
| Enclosure Material | Thermoplastic polyester (PBT) |
| Housing Material | Thermoplastic (PBT) |
| Material | Plastic |
| Additional Information | 2P+E |
| Recommended Screw Driver | PH2 |
| Cable Entry Position | Anti-kink sleeve |
| RAL Number | RAL 7001 - Silver Grey |
| Color | Red |
| Cable Cross-Section | 1 ... 2.5 mm² |
Environmental
| Ambient Temperature | -25 ... 40 °C |
| Degree of Protection | IP67, IP69 |
| RoHS Status | Following EU Directive 2011/65/EU |
Technical UL/CSA
| Tightening Torque UL/CSA | 7.1 in·lb |
Dimensions
| Product Net Width | 70 mm |
| Product Net Height | 80 mm |
| Product Net Depth / Length | 171 mm |
| Product Net Weight | 0.2 kg |
Why Proax for ABB ABB320C7W?
Proax is an authorized distributor of ABB ABB320C7W and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
