6212120
Official DistributorBy Rittal
SKU
RIT6212120
Weight
14.2 kg
CP support section height-adjustable, CP120/120, for weight range 10-60 kg
Supply includes
Assembly components

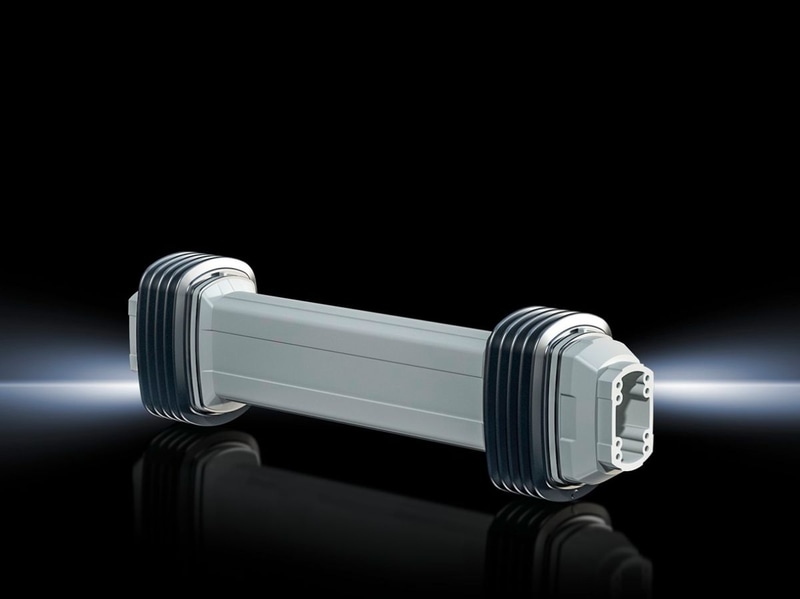

Support Profile, Height-Adjustable for support arm systems
The new height-adjustable support section always provides the right view of the key parameters in human/machine interaction. The system can be fitted directly to the components of the CP 120 support arm system on the wall side, and to either the CP 60 or CP 120 support arm system on the enclosure side, depending on the model.
Technical Specifications
Dimensions
| Length | 790 mm |
Material
| Hinge | Cast aluminum |
| Concertina section | Plastic |
| Benefits | Support arm holds in every position |
| Applications | For tall and short operators |
| Basic color | RAL 7035 |
| Color | RAL 7035 |
| Length | 790 mm |
| Connection options enclosure | CP 120 |
| Connection options wall / machine | CP 120 |
| Note | Maximum cross-section for cable entry 17 x 59 mm |
| Technical specifications | Cable trough: 43 x 21 mm (W x H), max. connector gland: 59 x 17 mm (W x H) |
| Load | 10 kg...60 kg |
| Weight/packaging unit | 14.2 kg |
| Customs tariff number | 73269060 |
| EAN | 4028177924345 |
| ETIM 7.0 | EC000882 |
| ECLASS 8.0 | 27400556 |
Why Proax for Rittal 6212120?
Proax is an authorized distributor of Rittal 6212120 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
