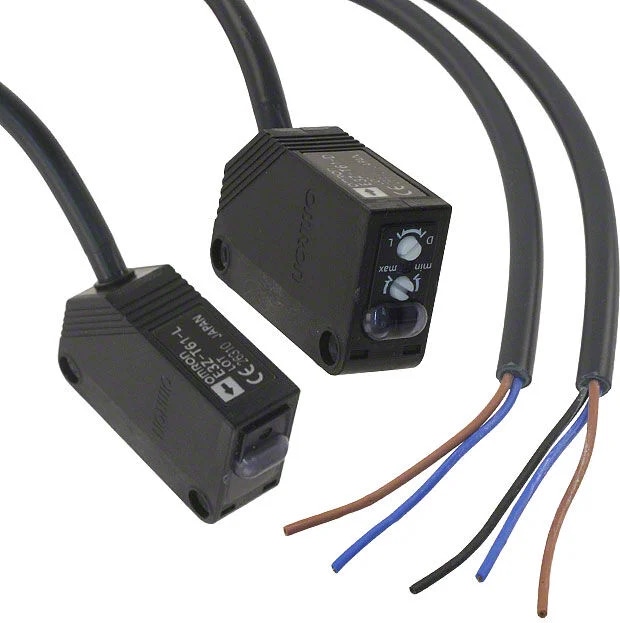

E3Z Compact Plastic Body Photoelectric Sensor
General purpose sensor in compact plastic housing
- Minimal optical axis deviation for easy alignment
- IP67 and IP69K for highest water resistance
- Intensive shielding for highest noise immunity (EMC)
- Multiple molding housing for high mechanical resistance
For higher precision and longer distance see E3Z Laser
Ambient light immunity
It is never possible to totally control the environmental conditions on large installations such as that in material handling or logistics. Reliable sensing is key to ensuring the non-stop operation of these systems. Ambient light can cause conventional sensors to false trigger. Omron’s pulse synchronisation and light wavelength filters ensure ambient light never causes errors in detection.
EMC noise immunity
High electromagnetic noise immunity
IP69k
The IP69k test according to DIN 40 050 part 9 is intended to simulate high pressure / steam cleaning. During the test 14-16 l/min water at 80ºC is sprayed onto the sensor from different angles with 8000-10000 kPa. The sensor may not suffer any damaging effects from high pressure water in appearance and functionality.
| Body Type | Rectangular - Compact |
| Sensing Method | Through-beam |
| Output | NPN |
| Max Sensing Distance | 15 m |
| Connection | Pre-wired |
| Cable Length | 2 m |
| Light Source | Infrared LED |
| Operation | L-ON/D-ON selectable |
| Supply Voltage | 12 to 24 VDC |
| Housing Material | Plastic |
Why Proax for Omron E3Z-T61?
Proax is an authorized distributor of Omron E3Z-T61. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Alternate Names | E3ZT61 |
| Pack Size | 1 |
Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m, NPN, Light-ON/Dark-ON, 2 m cable
Photoelectric sensor, rectangular housing, red LED, through-beam, receiver unit, NPN, Light-ON/Dark-ON, 2 m cable- Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m, NPN, Light-ON/Dark-ON, M12 pigtail connector, 0.3 m
- Photoelectric sensor, rectangular housing, oil resistant coating, infrared LED, through-beam, 15 m, NPN, Light-ON/Dark-ON, M8 pigtail connector 4-pin, 0.3 m
- Photoelectric sensor, rectangular housing, oil resistant coating, infrared LED, through-beam, 15 m, NPN, Light-ON/Dark-ON, 2 m cable
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, receiver unit, NPN, Light-ON/Dark-ON, 2 m cable
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, emitter unit, NPN, Light-ON/Dark-ON, 2 m cable
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, NPN, Light-ON/Dark-ON, M8 pigtail connector 4-pin, 0.3 m
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, NPN, Light-ON/Dark-ON, M12 pigtail connector, 0.3 m
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, NPN, Light-ON/Dark-ON, M8 4-pin connector
- Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m, NPN, Light-ON/Dark-ON, M8 4-pin connector
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, 30 m, NPN, Light-ON/Dark-ON, 2 m cable
- Photoelectric sensor, rectangular housing, infrared LED, through-beam, 15 m, PNP, Light-ON/Dark-ON, 2 m cable
- Photoelectric sensor, rectangular housing, red LED, through-beam, 10 m, PNP, Light-ON/Dark-ON, 2 m cable
