1424583
Official DistributorSKU
PHX1424583
MPN
MH-27-MULTI-65-PV-BK
Weight
0.077 kg
This product is Not Cancellable/Not Returnable
Series MH

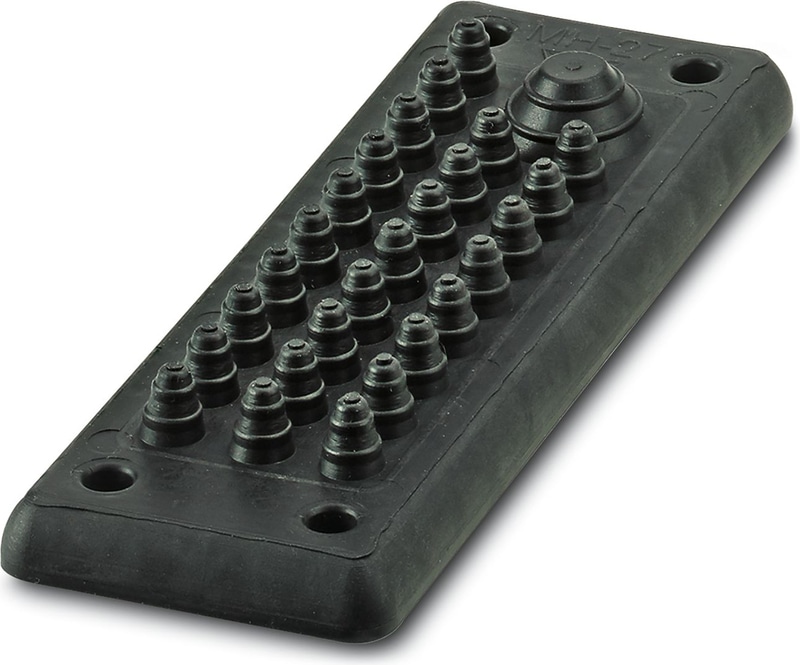

MH-27-MULTI-65-PV-BK - Cable feed-through plates
Cable feed-through plates, no. of conductors: 27, external cable diameter: 26x 3 mm ... 6 mm, 1x 10 mm ... 20 mm, material: PP (Core), material: TPE-SEBS (external material), color: black, length: 154 mm, width: 56 mm, height: 18.5 mm
- The panel cutouts of size B24 heavy-duty connectors can be used.
Technical Specifications
Notes
| General | incl. mounting screws |
Product properties
| No. of conductors | 27 |
Connection data
| External Cable Diameter | 26x 3 mm ... 6 mm |
| Tightening torque | 1.8 Nm |
Dimensions
| Width | 56 mm |
| Height | 18.5 mm |
| Length | 154 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4 mm |
Material specifications
| Color | black (RAL 9005) |
| Material interior | PP |
| Material exterior | TPE-SEBS |
| Flammability rating according to UL 94 | V0 |
Cable/line
| External Cable Diameter | 26x 3 mm ... 6 mm |
| External Cable Diameter | 1x 10 mm ... 20 mm |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 90 °C |
Mounting
| Assembly instructions | M4 mounting screw, torque: 1.8 Nm, SW5 Allen key |
| Assembly instructions | The mounting screws included should be used for assembly.Assembly steps:1) Fix Multigates with the mounting screws provided (observe torque)2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20 mm (to improve strain relief). |
Why Proax for Phoenix Contact 1424583?
Proax is an authorized distributor of Phoenix Contact 1424583 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
