1200294
Official DistributorSKU
PHX1200294
MPN
SF-ASD 16
Weight
0.565 kg
This product is Not Cancellable/Not Returnable
Series SF-ASD

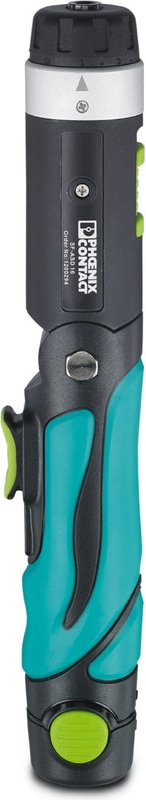

SF-ASD 16 - Cordless screwdriver
Cordless screwdriver, incl. battery, two-speed gearbox, forward/reverse running and 16-stage clutch up to 450 rpm, hexagonal quick connection.
- 3.6 V
- Cordless screwdriver with two-speed gearbox, forward/reverse running and 16-stage clutch with drilling speed of up to 450 rpm
- Adjustable from 0.2 ... 4.3 Nm
- Comfortable one-handed operation in a straight or angled position
- 6.3 mm hexagonal fast connection drill chuck
- Compact design
Technical Specifications
Notes
| General | packed in cardboard |
Environmental Product Compliance
| California Proposition 65 | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
Product properties
| Type of packaging | packed in cardboard |
| Battery-operated voltage | 3.6 V |
| Battery charging | 60 min. |
Insulation characteristics
| Protection class | II |
Electrical properties
| Power consumption | 7.2 W |
| Nominal voltage UN | 3.6 V DC |
| Nominal voltage UN | 3.6 V DC |
Battery
| Battery charging | 60.00 min. |
| Battery-operated voltage | 3.60 V DC |
| Battery capacity | 2.00 Ah |
Connection data
| Torque range | 0.2 Nm ... 4.3 Nm |
| Output | Universal, replaceable |
Dimensions
| Width | 45 mm |
| Height | 172 mm |
| Length | 266 mm |
Ambient conditions
| Ambient Temperature (Operation) | 5 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C |
| Permissible humidity (operation) | 95 % (<) |
Accessories
SF-ASD 16/CHARGER - Charger, for 100 ... 240 V mains voltage, recognition of battery and parameter check, rapid charging, short-circuit resistant, polarized, operating mode display
SF-ASD 16/ACCU 1,5 AH - Replacement battery, 1.5 Ah, lithium-ion, 3.6 V, for SF-ASD 16 cordless screwdriver
Screw bit, slot, E6.3-1/4" drive, Size: 1.0 x 5.5 x 50 mm, hardened, suitable for holders as per DIN 3126-F 6.3 / ISO 1173
