4050741
Official DistributorBy Rittal
SKU
RIT4050741
Weight
0.005 kg
Series Wire end ferrule Loose

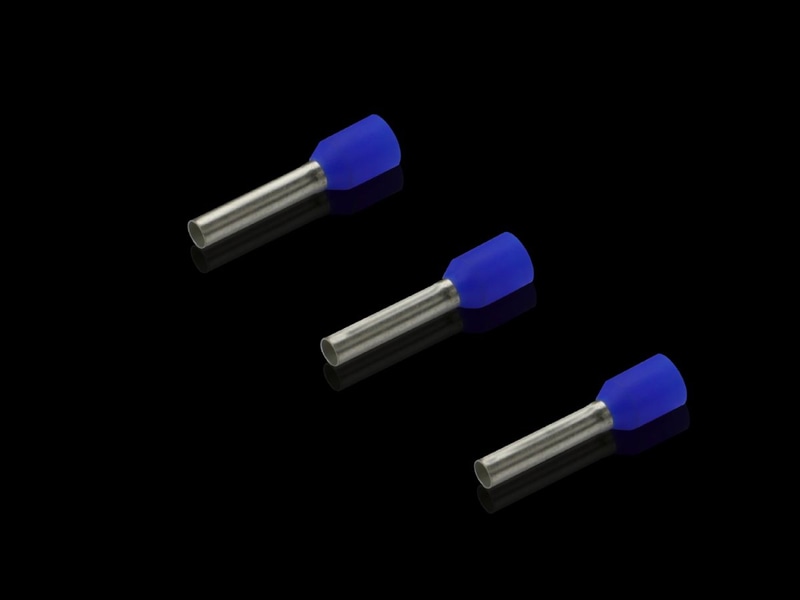

Wire end ferrules for wire processing, 2.5 mm², blue, loose, 12 mm, 10x100
Wire end ferrule Loose
With plastic collar.
Technical Specifications
Material
| Plastic collar | Polypropylene |
| Technical specifications | Heat resistant up to 105 °C |
| Color | Blue |
| Length | 12 mm |
| AWG | 14 |
| Internal diameter | 4.2 mm |
| For cross section | 2.5 mm² |
| DIN color code | Yes |
| Note | UL-certified in conjunction with the relevant tools, e.g. crimping machines. |
| Standards | AEH DIN 46228 |
| Suitable for Model No. | 4051.205 |
| Delivery form | Loose (10 packs of 100) |
| Packaging unit | 1,000 pc(s). |
| Weight/packaging unit | 0.005 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177805095 |
| ETIM 7.0 | EC000005 |
| ECLASS 8.0 | 36659290 |
