4050736
Official DistributorBy Rittal
SKU
RIT4050736
Weight
0.1 kg
Series Wire end ferrule Loose

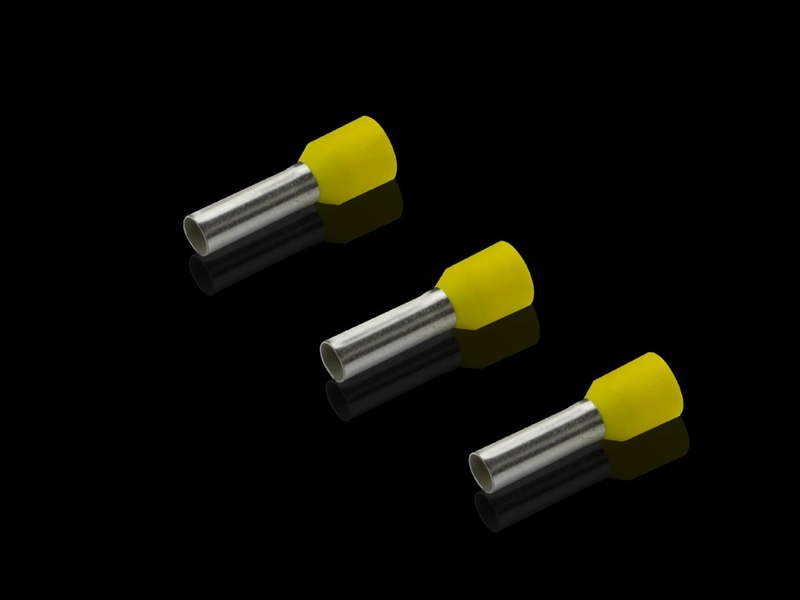

Wire end ferrules for wire processing, 6 mm², yellow, loose, 12 mm
Wire end ferrule Loose
With plastic collar.
Technical Specifications
Material
| Plastic collar | Polypropylene |
| Technical specifications | Heat resistant up to 105 °C |
| Color | Yellow |
| Length | 12 mm |
| AWG | 10 |
| Internal diameter | 6.3 mm |
| For cross section | 6 mm² |
| DIN color code | Yes |
| Note | UL-certified in conjunction with the relevant tools, e.g. crimping machines. |
| Standards | AEH DIN 46228 |
| Suitable for Model No. | 4051.210 |
| Delivery form | Loose |
| Packaging unit | 100 pc(s). |
| Weight/packaging unit | 0.1 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177805040 |
| ETIM 7.0 | EC000005 |
| ECLASS 8.0 | 36659290 |
