Official DistributorBy Omron
SKU
Motor Condition Monitoring, AC, 3-phase, Induction motor, Vibration & temperature model, 100 to 240 VAC, Transistor control output, Push-in Plus, LCD display, Ethernet IP

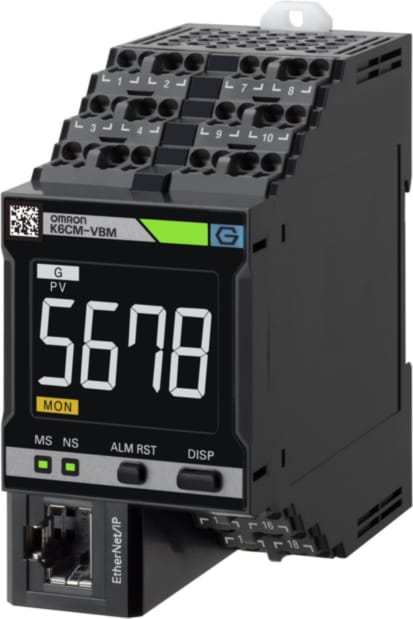

K6CM Motor Condition Monitoring Device
K6CM Motor Condition Monitoring Device with EtherNet/IP Communication
The K6CM is the latest motor condition monitoring device with the ability to quantify the status of three-phase induction motors. With built-in EtherNet/IP & Modbus TCP communication you can remotely monitor motor current, vibration & temperature, or insulation resistance depending on the model selected. The K6CM provides 24/7 monitoring to guard against motor failure by performing multiple checks and alerting users of abnormalities. This device allows the user to perform predictive maintenance, respond quicker to issues, and reduce operational costs.
- K6CM-C12M- Current analysis model (ideal for monitoring abnormal load conditions)
- K6CM-VBM- Vibration/Temperature model (ideal for monitoring bearing wear)
- K6CM-ISM- Insulation resistance model (ideal for monitoring insulation breakdown)
- EtherNet/IP and Modbus TCP communications
- LCD visual alarm display for easy visual indication of motor status
- Built in alarm transistor outputs for stack lights and indicators
- Software tool provides trending analysis with the ability to monitor up to 10 motors at once
- Push-in plus terminals that reduces wiring work
- Self-diagnostic function alerts user of issues with K6CM device
- Quick setup and operation
- UL Listed
Technical Specifications
| Phase | 3-phase |
| Operation | Detection of motor degradation by measuring vibration and temperature |
| Range | 100-240 VAC 50/60Hz |
| Output | 3 Transistor outputs (NC), 24VDC rated voltage, max current 50mA DC |
| Supply Voltage | 100-240 VAC 50/60Hz |
| Case Material | PC |
| Mounting | DIN rail |
Why Proax for Omron K6CM-VBMA-EIP?
Proax is an authorized distributor of Omron K6CM-VBMA-EIP. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | K6CMVBMAEIP |
| Pack Size | 1 |
Recommended
Sensor head & Pre-amplifier for Vibration & temperature model K6CM-VBS1, M6 screw attachment part also included
