DRSM42LG-04A2AZAK / AZD-K
Official DistributorSKU
ORIDRSM42LG04A2AZAKAZDKD

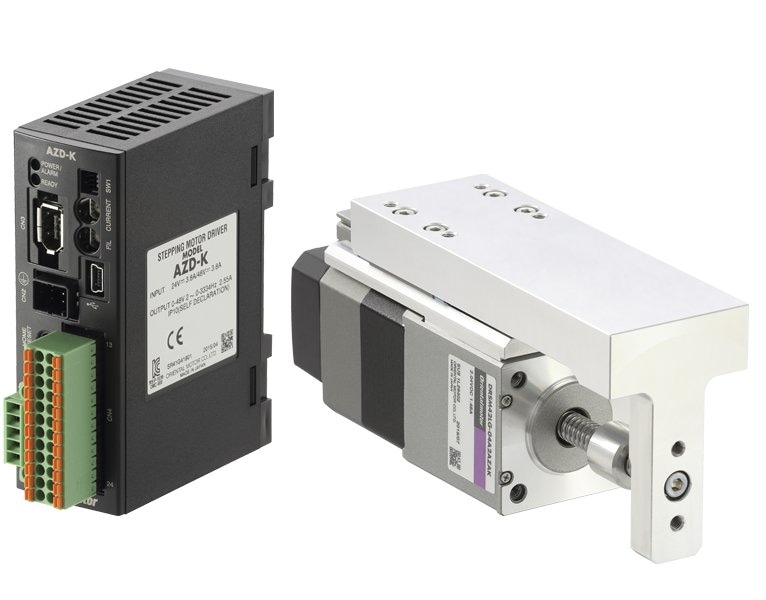

42 mm Compact Linear Actuator with Guide, Absolute Encoder Type
The DRS2 Series uses the AlphaStep AZ Series equipped with the Absolute Sensor for the driving motor. The Absolute Sensor is a mechanical multi-turn Absolute Sensor, so an external sensor is not required. This helps to save space and reduce wiring, as well as more compact and lightweight design of the equipment.- Low Vibration
- High Positioning Accuracy
- Reliable Design and Structure
Technical Specifications
| Motor Type | AZ Series with Absolute Sensor |
| Driver Type | Pulse Input |
| Power Supply | 24/48 VDC |
| Actuator Frame Size | 1.65 in. |
| Drive Method | Rolled Ball Screw |
| Repetitive Positioning Accuracy | ±0.0004 in. |
| Maximum Load Moment | MP: 184 oz-inMY: 142 oz-inMR: 350 oz-in |
| Lost Motion | 0.002 in. |
| Guide | Equipped |
| Cable Direction | Left |
| Electromagnetic Brake | Not Equipped |
| Lead | 0.079 in. |
| Stroke | 1.57 in. |
| Max. Horizontal Transportable Mass | 22 lb |
| Max. speed | 1.97 in/s |
| Max. Thrust Force | 45 lb |
| Push Force | 90 lb |
| Max. Holding Force | 45 lb |
| Components | DRSM42LG-04A2AZAK (Actuator)AZD-K (Driver) |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | CE |
| Insulation resistance | [Actuator] 100 MΩ or more when 500 VDC megger is applied between the motor windings and case.[Driver] The measured value is 100 MΩ or more when a 500 VDC megger is applied between the FG Terminal - Power Input Terminal. |
| Dielectric strength | [Actuator] Sufficient to withstand 1 kV at 50 Hz or 60 Hz applied between the motor windings and case for 1 minute. |
| Ambient temperature range | 32ºF ~ 104ºF (0ºC ~ 40ºC) (nonfreezing) |
| Ambient Humidity | 85% or less (noncondensing) |
