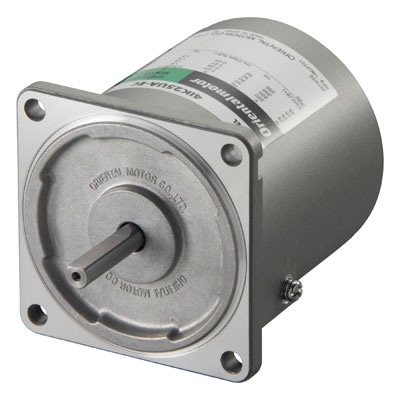

AC Motor
4IK25UGV-UAM
Official DistributorSKU
ORI4IK25UGVUAM
Pinion Shaft AC Speed Control Motor
This item has been discontinued. Contact Technical Support for replacement.Documents
Technical Specifications
| Motor Type | Induction |
| Frame Size | 3.15 in |
| Output Power | 25 W (1/30 HP) |
| Voltage (VAC) | Single-Phase 110/115 VAC |
| Frequency (Hz) | 60 |
| Current | 0.75 A |
| Shaft/Gear Type | Pinion Shaft (Gearhead required - sold separately) |
| Type | Cable |
| RoHS Compliant | These products do not contain substances that exceed the regulation values in the RoHS Directive. |
| Safety Standards | UL |
| CE Marking | Low Voltage Directives |
| Electromagnetic Brake | Equipped |
| Insulation resistance | 100 MΩ or more when 500 VDC megger is applied between the windings and the case after rated operation under normal ambient temperature and humidity. |
| Dielectric strength | Sufficient to withstand 1.5 kVAC at 50 Hz or 60 Hz applied between the windings and the case for 1 minute after rated operation under normal ambient temperature and humidity. |
| Temperature Rise | A gearhead or equivalent heat sink is connected to the motor and the winding temperature rise is measured at 144ºF (80ºC) or less using the resistance change method after rated operation with no load under normal ambient temperature and humidity |
| Insulation Class | 130 (B) |
| Overheat Protection | Built-in Thermal Protector (automatic return type) |
| Ambient temperature range | 14ºF ~ 104ºF (-10ºC ~ 40ºC) (nonfreezing) |
| Ambient Humidity | 85% max. (non-condensing) |
| Degree of Protection | IP20 |
Why Proax for Oriental Motor 4IK25UGV-UAM?
Proax is the authorized distributor of Oriental Motor 4IK25UGV-UAM. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | 4IK25UGVUAM |
| Pack Size | 1 |
