Official DistributorBy Omron
SKU
This product is Not Cancellable/Not Returnable
Series A22NE-PEstop

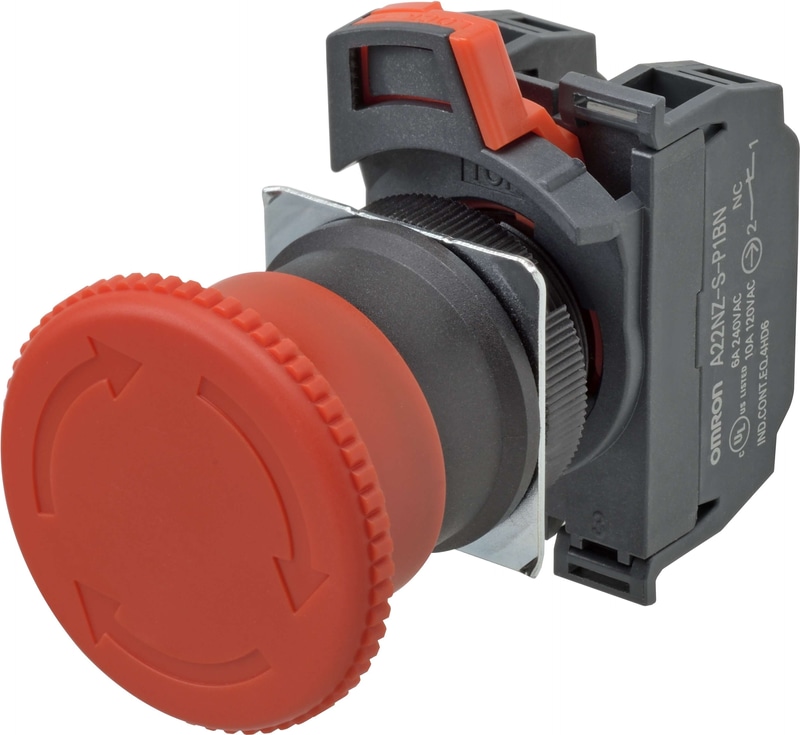

Emergency stop switch, Push-In, non-illuminated, 40 mm dia, push-lock/turn-reset, 2NC
Documents
A22NE-PEstop
Emergency Stop Switches, 22 mm dia. Base Push-in Plus
Technical Specifications
| Type | Switch |
| Contact Configuration | Single Pole Single Throw (SPST)-Normally Closed (NC)+Single Pole Single Throw (SPST)-Normally Closed (NC) |
| Action Type | Push-Lock, Turn-Reset |
| Control Box | Accessory |
| Bezel Color | Black |
| Allowable Mechanical Operating Frequency | 30 Operations/Minute Max. (One operation consists of set and reset operations.) |
| Allowable Electrical Operating Frequency | 30 Operations/Minute Max. (One operation consists of set and reset operations.) |
| Contact Resistance (Initial Value) | 100 MΩ |
| Dielectric Strength Between Terminals of Same Polarity for 1 Minute (Initial Value) | 2500 V |
| Dielectric Strength Between Each Terminal and Ground for 1 Minute (Initial Value) | 2500 V |
| Vibration resistance | 10 to 55 Hz, 1.5 mm Double Amplitude (Contact Separation within 1 ms) |
| Shock Resistance (Malfunction Contact Separation within 1 ms) | 250 m/s² |
| Mechanical Operation Durability [Min] (One Operation Consists of Set and Reset Operations.) | 300000 |
| Electrical Operation Durability [Min] (One Operation Consists of Set and Reset Operations.) | 300000 |
| Electric Shock Protection Class | Class II |
| Degree of Contamination | 3 (EN60947-5-1) |
| Approximate Weight | 55 g |
| IP Rating | IP65 |
| Operating Ambient Temperature [Min] | -20 ºC |
| Operating Ambient Temperature [Max] | 70 ºC |
| Ambient Operating Relative Humidity | 35 to 85 mg |
| Ambient Storage Temperature [Min] | -40 ºC |
| Ambient Storage Temperature [Max] | 70 ºC |
| Minimum Direct Opening Stroke | 11 mm |
| Minimum Direct Opening Force | 45 N |
| Diameter | 22 mm |
| Head Diameter | 40 mm |
| PTI (Tracking Characteristic) | 175 |
| Minimum Insulation Resistance (at 500 VDC) | 100 MΩ |
Accessories
Why Proax for Omron A22NE-M-P202-N?
Proax is an authorized distributor of Omron A22NE-M-P202-N. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | A22NEMP202N |
| Pack Size | 1 |
